How to Choose Injection Molding Materials for a Part

Raw Material

How to Choose Injection Molding Materials

Answer in one sentence: The best injection molding material is the grade that meets the part’s function and environment while remaining moldable, inspectable, and economical at the planned volume — so start with loads, temperature, chemicals, moisture, appearance, dimensional stability, and service life, and only then compare resin families, fillers, additives, and supplier grades.

How to use this guide: Use the selection sequence to shortlist, the family table to compare, the total-cost and manufacturability checks to avoid the cheapest-grade trap, and the test matrix and approval record to freeze the grade so a repeat order reproduces the same part.

A practical material-selection sequence

  1. Define the job: load type, stress duration, impact, wear, fatigue, temperature, humidity, chemicals, UV, electrical exposure, and cleaning.
  2. Define the geometry: wall thickness, flow length, ribs, bosses, snap features, inserts, texture, transparency, and tolerances.
  3. Shortlist resin families: compare unfilled, reinforced, modified, and elastomer options without assuming a family name identifies a complete grade.
  4. Check processing: drying, melt and mold temperature, shear sensitivity, shrinkage, mold steel, cooling, ejection, and residence time.
  5. Test the shortlisted grades: use representative geometry and the relevant mechanical, dimensional, appearance, and environmental tests.
  6. Freeze the grade: document supplier, grade code, color, additive package, approved alternatives, and change-control rules.

The Protolabs thermoplastic material-selection guide makes the same point: evaluate material data against loads, stresses, temperature, aging, and the actual design. It also warns that a mold is designed around the shrink behavior of a particular resin, so material changes after tooling are not automatically risk-free.

Quick comparison of common injection molding families

FamilyOften evaluated forDesign or process caution
ABSHousings, trim, impact and appearance balanceMoisture, weld lines, surface finish, and chemical exposure depend on grade
PPLow density, chemical resistance, living hinges, and cost-sensitive partsHigher shrinkage and flexural behavior can affect fit and warpage
PCImpact, temperature, and transparent structural componentsResidual stress, drying, chemical sensitivity, and higher processing demand
PA or nylonWear, strength, temperature, and engineering componentsMoisture absorption, conditioning, shrinkage, and fiber orientation
POMLow-friction, wear, dimensional, and moving featuresGrade-specific processing, venting, and thermal safety requirements
PMMA or clear gradesAppearance, transparency, and light transmissionStress, brittleness, contamination, polish, and optical inspection
TPE or TPUFlexibility, grip, seals, and soft-touch surfacesBonding, compression set, recovery, ejection, and material compatibility

Compare grades, not resin families alone. Two grades sold under the same family name can differ in viscosity, filler content, heat resistance, and shrinkage. A glass-filled grade is not automatically stronger in the direction that matters: reinforcement improves stiffness but increases anisotropy, warpage, and wear debris, and it can weaken weld lines. Check strength and modulus at the service temperature, not only at the 23 °C datasheet reference temperature, and separate continuous, peak, impact, fatigue, and creep loads before comparing numbers.

How material choice changes the mold

Resin choice affects gate size, runner strategy, cooling, venting, steel wear, draft, ejection, and cavity shrink compensation. Filled materials may increase abrasion and create flow-direction differences. Moisture-sensitive materials need reliable drying and storage. High-temperature grades may require different heaters, steel, machine capability, and maintenance. Soft materials may need more support during ejection.

Processing changes the part, so processing must be part of the selection. Orientation and weld-line position follow gate placement and flow; fiber orientation follows the same path and changes shrinkage direction. A grade that looks right on a datasheet can fail in the mold if its viscosity needs a gate the tool does not have, or if its shrinkage needs a cavity compensation the tool was not cut for. Check drying, melt and mold temperature windows, shear sensitivity, and residence time against the actual machine and tool before committing to a grade.

Total cost, not unit price

Do not select a material only by unit price. Compare resin cost, cycle time, scrap risk, tool complexity, inspection, secondary operations, and field-failure risk. A more expensive grade can be the lower total-cost choice if it avoids redesign or unstable production, but that decision should be supported by requirements and testing.

Cost itemMaterial A (lower price per kg)Material B (higher price per kg)
Price per kgLowerHigher
Cycle timeLongerShorter
Scrap rateHigherLower
Tool maintenanceHigherLower
Total cost per good partCan be higherCan be lower

Illustrative example: the figures in the source table ($2.50 vs $3.20 per kg, 45 s vs 38 s cycle, 5% vs 2% scrap) are invented to show the method, not measured results. Use your own quoted prices, cycle estimates, and scrap rates in the same table.

The same logic applies to specialty additives: a flame-retardant, UV-stabilized, or lubricated grade costs more per kilogram, and that premium is only justified if it removes a secondary operation, a failure mode, or a compliance risk. Price the additive against the problem it solves, not against the base resin alone.

Manufacturability: can the grade be molded into this part?

A grade can pass every mechanical test on paper and still be the wrong choice if the part cannot be molded from it reliably. Check four things before shortlisting: flow length against wall thickness, viscosity against gate size, shrinkage against tolerance, and cooling against cycle-time target. A thin-wall part in a high-viscosity resin is a filling risk; a tight-tolerance part in a high-shrinkage, moisture-sensitive resin is a dimensional risk; a large flat part in a fast-cooling resin is a warpage risk.

CheckWhat to verifyWarning sign
FlowMelt can fill the longest flow path before freezingShort shots, weld lines in cosmetic areas
ShrinkageCavity compensation matches the grade’s shrinkageDimensions drift between lots or after conditioning
CoolingCooling time fits the cycle target without distortionWarpage, sink marks, long cycles
Tool wearFiller content against steel and gate lifeGate wear, dimensional drift over the tool life

If the design is still changing, say so in the brief and ask for a preliminary quotation with stated assumptions, rather than a firm price on a moving target. A supplier that prices a moving design as if it were frozen is either guessing or planning to charge for the changes later.

Aesthetics and surface finish

Appearance is a material decision, not a finishing decision. A glass-filled nylon will show fiber read-through on a high-gloss surface; a crystal-clear polypropylene will not give the optical clarity of polycarbonate; a rigid ABS will not give a soft grip without a second material. Decide the appearance requirement first — gloss level, texture, transparency, color stability under UV — and then check which grades can deliver it in the mold, before specifying a secondary finish to fix what the material cannot do.

A polished mold alone does not guarantee a polished part: flow lines and dull spots on a high-gloss part are often a process problem, not a mold problem. Texture hides minor imperfections that would show on a high-gloss surface, and it needs draft angle and ejector planning of its own. For the full finish standards, see the guide on choosing the right injection mold surface finish.

Regulatory compliance and certifications

Compliance can eliminate grades faster than any mechanical test. Check the requirement before shortlisting, not after tooling.

RequirementWhat it controlsTypical evidence
FDA food contactMaterials for food-contact partsSupplier compliance statement for the exact grade
EU food contactRegulation (EC) No 1935/2004 and Plastics Regulation (EU) No 10/2011Declaration of compliance for the application
RoHSRestricted substances in electrical and electronic equipmentSupplier RoHS declaration
REACHSubstances of very high concern, including restricted phthalatesSupplier REACH statement for the grade
UL 94Flammability rating (V-0 means burning stops within 10 seconds; HB is the lowest rating)UL Yellow Card for the exact grade and thickness

A certification belongs to a specific grade and thickness, not to a resin family. A "flame-retardant ABS" and a "food-grade PP" are claims about a grade from a supplier, and they need current documents — a generic material name is not a compliance claim. If the product is a medical device, a children’s product, or a food-contact part, confirm the exact grade’s documents before the mold is cut, because changing grade after tooling can mean changing shrinkage, and changing shrinkage can mean changing the tool.

Turn requirements into a material test matrix

A resin shortlist is useful only when each selection criterion is tied to a product requirement and a verification route. Create rows for load, temperature, impact, wear, chemicals, moisture, UV, electrical behavior, appearance, dimensional stability, and customer constraints.

RequirementMaterial questionVerification
Load and fatigueDoes the grade retain performance over time and temperature?Calculation plus representative testing
Dimensional interfaceHow do shrinkage, conditioning, filler, and cooling affect the datum?Grade data, trials, and dimensional study
Processing fitCan the resin be dried, filled, cooled, and ejected in the planned tool?Supplier data and DFM/process review

Record supplier, grade, color, additive package, alternatives, and change-control rule. Account for tool steel, drying, cycle, scrap, inspection, and field-risk implications. Use the engineering service to connect the shortlist to geometry, or the estimator for an early cost discussion.

Test the shortlisted grades on representative geometry, not on datasheet bars alone: tensile, flexural, impact, and hardness for mechanics; heat deflection and Vicat for temperature; density and water absorption for physical behavior; and the relevant environmental tests for the application. For PVC parts specifically, the full test program — mechanical, thermal, density, water absorption, rigid-vs-flexible differences — is covered in the PVC testing guide. For PMMA, grade selection by the risk it solves is covered in the PMMA grade-selection guide.

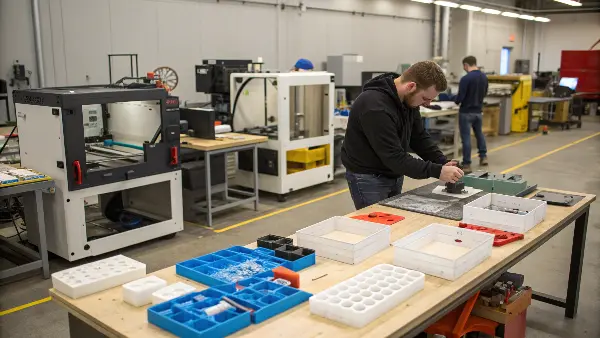

Validate with prototyping before tooling

Prototyping is the cheapest place to catch a wrong material choice. Use SLA or SLS prototypes for form and fit, and CNC-machined prototypes from the actual target material for functional testing — a prototype in a different material proves geometry, not material behavior. Run the prototype through the same checks the production part will face: drop, temperature, chemical exposure, UV, and cleaning. A design or material problem found at the prototype stage costs a revision; the same problem found after tooling costs a mold change.

RFQ material checklist

  • Part function, load, temperature, chemical, moisture, UV, electrical, and service-life requirements.
  • Exact grade, color, reinforcement, additives, approved alternatives, and supplier data sheet.
  • Critical dimensions, appearance, transparency, texture, weld-line limits, and test method.
  • Annual volume, batch size, cycle target, tool ownership, cavity count, and inspection plan.

Frequently asked questions

Is there a single best engineering plastic?

No. The right grade depends on the load, temperature, chemical exposure, appearance, tolerance, and volume of the specific part. A grade that is best for a high-temperature housing can be wrong for a transparent cover or a living hinge.

Is a glass-filled grade always stronger?

No. Glass fiber improves stiffness and tensile strength in the flow direction, but it increases anisotropy, warpage, wear debris, and weld-line weakness. Check the property in the direction and condition the part actually experiences.

Are datasheet values enough to select a grade?

No. Datasheet values are measured under standard conditions, usually at 23 °C, on standard specimens. They do not show how the grade behaves at service temperature, after conditioning, in thin walls, or at weld lines. Use them to shortlist, then verify with representative testing.

What should a material approval record contain?

The exact grade and supplier, color and additive package, approved alternatives, the tests and results that supported the choice, and the change-control triggers — a resin supplier change, a grade change, a regrind policy change — that require re-approval.

Related Cavity Mold services

For design review, mold engineering, tooling, and production planning, see our mold engineering service, mold-making service, and injection molding service.

Need a part-specific recommendation? Contact Cavity Mold with the part drawing, resin, annual volume, tolerances, and target application.

Technical references

  • Protolabs: thermoplastic material-selection guide (www.protolabs.com)
  • Protolabs: injection molding materials and material selection for CNC plastics (www.protolabs.com)
