Tired of standard PMMA limitations holding back your designs? These constraints can frustrate project goals, leading to subpar product performance. Discover advanced PMMA grades for your next project.
Advanced PMMA formulations, like impact-modified, heat-resistant, and UV-stable grades1, are significantly enhancing injection molding2. They offer improved toughness, higher temperature tolerance, and better UV degradation resistance. This means more durable and versatile products for various demanding applications.
So, you’re probably wondering how these fancy PMMA types actually make a difference in the real world, right? Well, before we jump into the deep end with these specialized grades, let’s cover some basics. It’s always good to build a solid foundation. We’ll explore what PMMA is, how it’s used, and what you, as a project manager like Alex, really need to know to make smart material choices. Trust me, understanding these fundamentals will make appreciating the advanced stuff a whole lot easier. Let’s get started, shall we?
Can PMMA even be injection molded?
Unsure if PMMA suits your complex injection molded parts? This uncertainty can stall projects, making you question material choices for intricate designs. Good news! PMMA is perfectly suited.
Yes, PMMA (Polymethyl Methacrylate) can absolutely be injection molded. It’s actually a popular choice due to its excellent flow properties, high transparency, and ability to replicate fine mold details. This makes it great for producing complex and precise parts.
Now, when I say PMMA is great for injection molding, I really mean it. As a project manager, Alex, you’ve probably dealt with materials that are a pain to work with – poor flow, warping, you name it. PMMA, especially the grades we’re talking about, tends to be much more cooperative. Its melt viscosity allows it to fill intricate mold cavities smoothly. This means you can get those sharp corners and detailed textures just right. We’ve seen it used for everything from tiny optical lenses to larger automotive light covers. The key things to remember for successful PMMA injection molding are:
- Proper Drying: PMMA is hygroscopic, meaning it absorbs moisture. If you don’t dry it properly before molding, you’ll see silver streaks or bubbles. Nightmare!
- Temperature Control: Precise barrel and mold temperatures are crucial. Too hot, and it degrades; too cold, and you get flow issues.
- Mold Design: Good venting and a well-polished surface are essential for that crystal-clear finish PMMA is known for.
Think about a project I handled a while back for a client needing high-gloss electronics casings. The precision needed was immense. We chose a specific PMMA grade, dialed in the drying and temperature parameters, and the results were spot on. It’s these little details that CavityMold really focuses on, ensuring our clients get the best possible outcomes.So, what’s the real difference between PMMA and just plain ‘acrylic’?

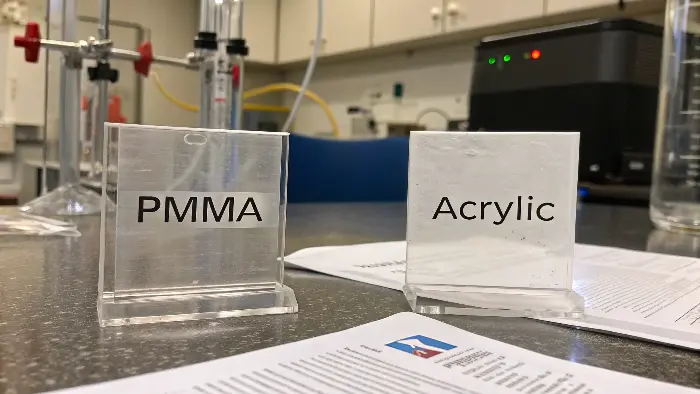

Confused by "PMMA" versus "acrylic" terminology in specifications? This can lead to miscommunication with suppliers and potential material selection errors. Simply put, PMMA is acrylic!
There’s actually no difference! PMMA is the chemical abbreviation for Polymethyl Methacrylate. "Acrylic" is the common trade name for this exact same thermoplastic polymer. So, PMMA and acrylic refer to the same material.
 It’s funny, this question comes up a lot, Alex. I’ve seen spec sheets that use "PMMA" and others that use "acrylic," and it sometimes throws people for a loop. But yeah, they’re one and the same. Think of it like this: "Polymethyl Methacrylate" is the full, scientific name, like a person’s full legal name. "PMMA" is the handy abbreviation, like a nickname. And "acrylic" is the everyday, common name everyone uses, kind of like how we call sodium chloride "salt." Here’s a quick breakdown to make it super clear: |
Term | Type | Common Usage |
|---|---|---|---|
| Polymethyl Methacrylate | Chemical Name | Formal documents, scientific papers | |
| PMMA | Abbreviation | Technical specifications, industry jargon | |
| Acrylic | Common Name | Everyday conversation, general product descriptions | |
| Plexiglas®, Lucite® | Brand Names | Specific manufacturer’s acrylic products |
So, whether your supplier says PMMA or acrylic, you’re getting the same base material. The important thing is to then look at the grade of PMMA/acrylic. That’s where the real differences in properties like impact strength or heat resistance come into play. For instance, at CavityMold, when we discuss a project needing clear, weather-resistant parts, we’ll specify the type of PMMA that best fits, not just "acrylic" in general. It’s all about precision, right down to the terminology.

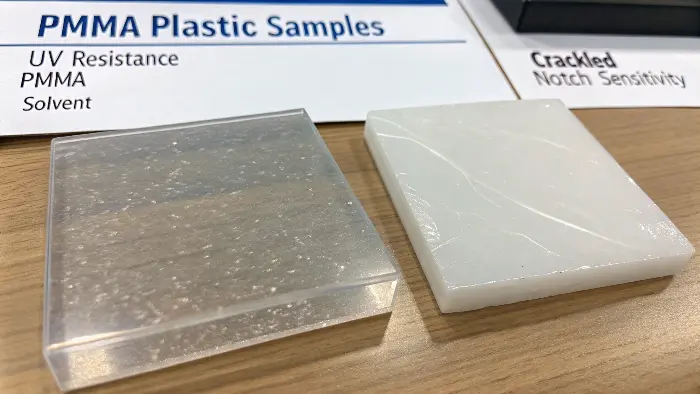

Okay, but what are the downsides of using PMMA plastic?
Worried PMMA’s drawbacks might compromise your product’s durability? Ignoring these weaknesses can lead to unexpected failures and costly redesigns later. Knowing its limitations is key.
Standard PMMA, despite its clarity and UV resistance, can be quite brittle and prone to cracking under impact. It also has lower resistance to certain solvents and can be notch-sensitive. Understanding these limitations is crucial for proper application.
Alright, let’s be real. No material is perfect, and PMMA has its quirks. As someone who needs to deliver robust products, Alex, you’ve got to know the potential pitfalls. The biggest one people point to with general-purpose PMMA is its brittleness. It’s a fairly rigid material, which is great for some things, but it means it doesn’t like sharp impacts much. Drop a standard acrylic sheet, and it might crack or shatter. This is often referred to as low impact strength.
Another thing to watch out for is stress cracking. If you put PMMA parts under constant stress, or expose them to certain chemicals – even some aggressive cleaning agents – they can develop tiny cracks over time. This is especially true if there are notches or sharp corners in the design, which act as stress concentrators.
Here’s a quick list of common concerns I’ve seen pop up:
- Lower Impact Strength (Brittleness): Especially when compared to super-tough materials like polycarbonate.
- Notch Sensitivity: It’s more prone to cracking if there are sharp internal corners or existing small damages.
- Susceptibility to Certain Solvents: Things like ketones, esters, and aromatic hydrocarbons can cause crazing or even dissolve it. So, always check chemical compatibility!
- Scratch Resistance: It’s actually pretty good, better than many other plastics, but it’s not glass. Though, I should mention that hard-coated grades can significantly improve this.
This is precisely why those advanced PMMA formulations we’ll talk more about are so important. They’re specifically engineered to overcome some of these very weaknesses. For example, impact-modified PMMA directly addresses the brittleness issue. It’s all about picking the right tool for the job, and sometimes that means a specialized grade.And how does PMMA hold up against sunlight – is it genuinely UV stable?
Concerned about PMMA yellowing or degrading in outdoor applications? Material degradation due to UV exposure can ruin product aesthetics and function. Standard PMMA offers excellent inherent UV stability.
Yes, standard PMMA is inherently very UV stable. It resists yellowing and degradation from ultraviolet radiation much better than many other clear plastics like polycarbonate or polystyrene, making it excellent for outdoor applications.
This is actually one of PMMA’s standout features, Alex. When you’re designing products for outdoor use, or even indoor applications near windows, UV stability is a massive concern. A lot of plastics will yellow, become brittle, or lose their clarity pretty quickly when exposed to sunlight. But PMMA? It’s a champ in this regard. I’ve seen PMMA installations that have been outdoors for decades – seriously, like 20 or 30 years – and still look remarkably good.
Its inherent chemical structure makes it resistant to UV radiation. It doesn’t typically need special UV stabilizers added to the base resin to perform well for most applications, though some specialized grades might have them for even more extreme conditions or longer guaranteed lifespans.
Compare this to, say, polycarbonate (PC). PC is super tough, which is great, but standard PC will yellow over time with UV exposure unless it has a UV-protective coating or specific additives. PMMA just naturally handles it better from the get-go.
So, for applications like:
- Automotive taillight lenses and light pipes
- Outdoor signage and displays
- Skylights and architectural glazing
- Greenhouse panels
PMMA is often a top choice precisely because of this excellent UV resistance and overall weatherability. We at CavityMold often recommend PMMA for parts that need to maintain their optical clarity and mechanical properties over long periods of outdoor exposure. It just saves so much hassle down the line. And as you guessed, the "UV-stable grades" mentioned in the main title take this natural advantage even further.How do specialized PMMA grades like impact-modified or heat-resistant ones really boost performance?
Frustrated by standard PMMA not meeting demanding application requirements? This can limit your design options and product performance. Specialized PMMA grades offer enhanced properties, unlocking new possibilities.
Specialized PMMA grades significantly boost performance. Impact-modified grades improve toughness and shatter resistance. Heat-resistant grades withstand higher service temperatures. Advanced UV-stable grades offer even better longevity outdoors, expanding PMMA’s application range.
This is where things get really interesting for project managers like you, Alex, who are pushing the boundaries of product design! Standard PMMA is good, but these specialized grades are true game-changers. They allow us to use PMMA in places where it previously might not have been suitable. Let’s break down a few key types:
1. Impact-Modified PMMA:
Remember how we talked about standard PMMA being a bit brittle? Well, impact-modified PMMA tackles that head-on. Manufacturers achieve this by incorporating rubbery additives (like acrylic or butadiene-based impact modifiers) or through copolymerization. The result is a material that’s significantly tougher – some grades can offer 5 to 10 times the impact strength of standard PMMA! I recall a project for sports safety equipment – a client needed clear visors. Standard PMMA just wouldn’t cut it due to impact concerns. Switching to an impact-modified grade made all the difference; it could take a direct hit without shattering. This opens up PMMA for applications like:
- Protective shields and machine guards
- Durable housings for portable electronics
- Automotive components like exterior trim or robust interior parts
It’s about getting that classic PMMA clarity and weatherability but with a serious dose of added muscle.
2. Heat-Resistant PMMA:
Standard PMMA has a decent, but not super high, heat deflection temperature (HDT), typically around 85-100°C depending on the grade. For applications like automotive interior lighting bezels, covers for LED lighting, or certain appliance parts that see elevated temperatures, you often need more. Heat-resistant PMMA grades are formulated to maintain their structural integrity and optical properties at higher continuous service temperatures, sometimes up to 110°C or even 120°C for short periods. This might involve changes to the polymer structure (e.g., by copolymerizing with N-substituted maleimides) or specific additives that enhance thermal stability. Imagine designing a compact light fixture where the bulb or LED array generates significant heat – a heat-resistant PMMA lens would be crucial to prevent warping or discoloration.
3. Enhanced UV-Stable PMMA:
While standard PMMA is already excellent with UV, some applications demand extreme longevity (20+ years) or are situated in very high UV environments (think desert climates or high-altitude locations). Enhanced UV-stable grades often incorporate advanced UV absorbers or stabilizers that provide an extra layer of protection. These additives work by absorbing harmful UV radiation and dissipating it as heat, preventing it from breaking down the polymer chains. This ensures the material remains clear, maintains its mechanical properties, and resists surface crazing for even longer periods. Think architectural glazing in sun-drenched regions or specialized marine applications.
At CavityMold, we work closely with clients like you to select the exact PMMA formulation that balances all these performance needs with cost-effectiveness and moldability. It’s not just about molding plastic; it’s about engineering a complete solution that works for your specific product.Conclusion
Advanced PMMA grades truly expand design freedom. They offer enhanced toughness, heat, and UV resistance, making PMMA a versatile, high-performance choice for many demanding injection molding projects. Master your molding right!
