How Does CavityMold Nail High-Precision PMMA Injection Molding Every Time?

Struggling with PMMA parts that don’t meet spec? Precision is tough. CavityMold delivers flawless PMMA components, mastering the art of high-precision molding.
CavityMold achieves high-precision PMMA injection molding¹ through meticulous mold design, advanced process control, material expertise, and rigorous quality assurance, ensuring tight tolerances and optical clarity² for demanding applications.
You know, Alex, when we talk about PMMA, especially for applications like automotive lenses, medical devices, or high-end consumer electronics, "close enough" just doesn’t cut it. Precision is king. I’ve spent years at CavityMold, and "Master Molding Right" isn’t just our slogan; it’s our daily grind, especially with tricky materials like Polymethyl Methacrylate³. It’s a beautiful material, PMMA – great clarity, good strength – but it demands respect to get those high-precision results. It’s not just about having a good machine; it’s about a whole philosophy and a set of carefully honed techniques. It’s funny, I remember when I first started, I thought plastic was just… plastic. Boy, was I wrong! The nuances, especially with something as optically demanding as PMMA, are incredible. Let’s pull back the curtain a bit and see how we make it happen.

Can You Really Get Super Precise Results With Injection Molded PMMA?

Doubting if PMMA can hit tight tolerances? It’s a common concern. Yes, with expert techniques, PMMA can achieve remarkable precision in injection molding.
Absolutely! Injection molding PMMA to high precision is achievable with precise mold construction, optimized processing parameters, and careful material handling. Typical achievable tolerances can range from ±0.001 to ±0.005 inches (±0.025mm to ±0.127mm), depending on part complexity and size.

So, Alex, you’re asking about precision with PMMA – and it’s a valid question! PMMA can be a bit finicky. It has a higher mold shrinkage rate compared to some other plastics, and it’s pretty sensitive to processing conditions. But can we nail tight tolerances? You betcha! At CavityMold, we live for this stuff. It’s like a puzzle, and getting it right is so satisfying.
It all starts with the mold design. This is non-negotiable, the absolute foundation.

• Material Selection for Mold: We use high-grade, stable tool steels like S136 for optical PMMA parts. Why? Because any thermal expansion or wear in the mold directly impacts part precision. You can’t build a precise part with a wobbly mold!
• Cooling Channel Design: Uniform cooling is super critical for PMMA to minimize warpage and internal stresses, which are total enemies of precision. We spend a lot of time simulating and optimizing cooling layouts. Sometimes, we even use conformal cooling if the geometry is really complex.
• Gate Location and Type: This influences how the PMMA flows into the cavity, affecting fill patterns, weld lines, stresses, and ultimately, dimensional stability. For PMMA, pinpoint gates or submarine gates are often used for cosmetic reasons, but for optical parts, a tab gate or fan gate might be better to reduce shear.
  Then, it’s about locking down those processing parameters.
• Melt Temperature: Too hot, and you risk degrading the PMMA (yellowing, reduced strength); too cool, and you get flow issues or high internal stress. We dial this in perfectly, often within a very narrow window.
• Injection Speed and Pressure: These need to be controlled with extreme precision to ensure complete fill without overpacking or causing shear stress, which can cloud PMMA.
• Holding Pressure and Time: This is crucial for compensating for shrinkage as the PMMA cools and solidifies. Getting this just right is an art.
  I remember a project for an optical lens – the tolerances were incredibly tight, almost down to the micron level in some features. We had to pull out all the stops: specialized diamond mold polishing, ultra-precise temperature control from the mold temperature controller, and a very, very patient process engineer! It took a few iterations, some serious head-scratching, and a couple of late nights fueled by coffee, but we got there. The client was over the moon! So yes, precision with PMMA is absolutely doable. It just takes expertise, patience, and an obsession with every single detail.

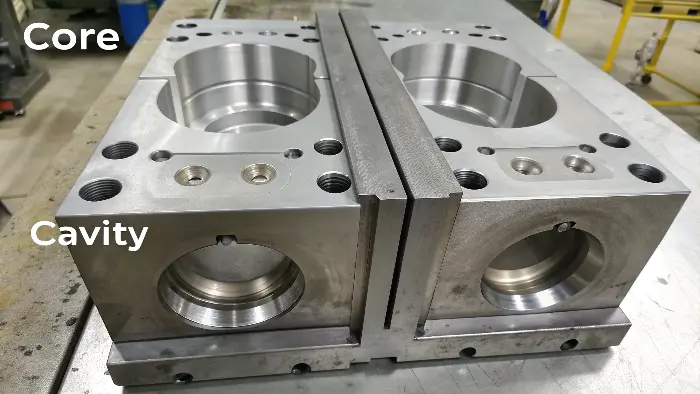

  What’s The Real Secret Behind The Core & Cavity For PMMA Molds?

  Confused about "core" and "cavity"? These mold components are fundamental. They are the two halves that precisely shape the molten plastic into your final part.

The core forms the internal features of a PMMA part, while the cavity shapes its external surfaces. Their precise machining, alignment, and especially surface finish are absolutely critical for producing accurate, high-quality PMMA components.

Alright, Alex, let’s talk about the heart of the injection mold: the core and cavity. It sounds simple, right? Two chunks of metal. But these two pieces are where the magic – or the disaster – happens, especially for PMMA. Imagine them as the two sides of a very precise, very expensive, and sometimes very, very shiny sandwich mold.

• The Cavity: This is typically the stationary half, the female part of the mold. It forms the external shape of your PMMA part. Think of it as creating the outer skin, the A-surface. For PMMA parts needing high optical clarity, like lenses, light pipes, or cosmetic covers, the surface finish of the cavity is paramount. We’re talking diamond polishing, optical-grade finishes – SPI A1 or even better. Any microscopic scratch or imperfection here will be directly transferred to the PMMA part, plain as day. I’ve seen projects where the required surface roughness (Ra) was in the nanometers!

• The Core: This is usually the moving half, the male part of the mold. It forms the internal features of the PMMA part. If your component has holes, bosses, ribs, standoffs, or complex internal geometries, the core is responsible for shaping them. The precision here is just as critical as the cavity, especially for fit and function. Their relationship needs to be absolutely perfect. It’s like a dance duo; they have to be in perfect sync:	Feature	Importance for PMMA Molding	CavityMold’s Focus
  Alignment	Prevents flash, mismatches, uneven wall thickness	High-precision guide pins, leader bushings, interlocks, meticulous fitting during mold assembly. We sometimes use witness marks.
  Material	Durability, thermal conductivity, polishability	Hardened stainless tool steels (e.g., S136, STAVAX) for optical PMMA due to high polishability and corrosion resistance.
  Surface Finish	Directly impacts PMMA part’s optical/cosmetic quality	SPI A1/A2, optical diamond polishing, vapor polishing if applicable (though less common directly on molds for PMMA). Careful handling to prevent ANY scratches.
  Venting	Allows trapped air/gasses to escape, prevents burns	Strategically placed vents, often just 0.0005" to 0.0015" (0.013-0.038mm) deep for PMMA to prevent flash. Critical for clear parts.
  Draft Angles	Ensures easy part ejection without drag marks	Minimum 0.5° usually, but for optical PMMA, more might be needed, or highly polished surfaces can sometimes allow less.

  We once had a complex PMMA housing for a medical diagnostic device. The internal features, formed by the core, had to align perfectly with external optical surfaces formed by the cavity, all while maintaining pristine clarity. The design and CNC machining of that core and cavity, followed by hours of painstaking manual polishing under microscopes, took weeks of intense work. It’s not just about cutting steel; it’s about understanding how PMMA behaves under pressure and temperature and engineering the core and cavity to accommodate that perfectly. It’s truly where "Master Molding Right" begins. It’s an art form, really!

  How Do We Dodge Pesky Issues Like Cavitation In PMMA Molding?

  Worried about voids or bubbles ruining your PMMA parts? Cavitation is a common foe. But, it’s preventable with the right knowledge and process control.

Cavitation, or voids/bubbles, in PMMA injection molding is typically caused by gas traps, excessive shrinkage, or flow issues. It’s prevented by optimizing mold venting, gate design, processing parameters (like injection speed, packing pressure, and melt temperature), and ensuring proper material drying.

Ah, cavitation – or as we often see them, voids, sink marks, or internal bubbles. These are the little imperfections that can be an absolute nightmare, especially in optically clear PMMA parts where everything shows! It’s essentially a pocket or a void that forms within the plastic part as it cools and solidifies. When I see these, Alex, alarm bells go off because they compromise not just aesthetics (which is huge for PMMA) but also potentially the structural integrity or optical performance of the part.
So, what causes this grief, and how do we at CavityMold tackle it? It’s usually one or a combination of these culprits:

• Trapped Gas (Air or Volatiles): As molten PMMA rushes into the mold cavity, it displaces air. If that air can’t escape fast enough through the designed vents, it gets compressed by the incoming plastic, gets hot, and can form a bubble or even cause a burn mark (diesel effect). Improperly dried PMMA releasing moisture as steam is another source of gas. Our solution?
  • Meticulous Mold Venting: We design tiny channels (often just 0.015mm to 0.03mm deep for PMMA – super small!) at the parting line, around inserts, or with vent pins to let air out but not the plastic.
  • Proper Material Drying: PMMA is hygroscopic. We dry it thoroughly, typically for 3-4 hours at 80-90°C, to below 0.02% moisture content.
• Shrinkage Voids: PMMA, like all plastics, shrinks as it cools from melt temperature to room temperature. If thicker sections of a part cool and solidify on the outside first, the molten material in the core can shrink away as it cools, leaving a void because there’s no more material to fill it. This is a big one for PMMA due to its shrinkage rate (around 0.2-0.8%). To combat this:
  • Part Design: We always push for uniform wall thickness. If thick sections are unavoidable, we try to core them out or use features like gas assist (though less common for small PMMA parts).
  • Packing Pressure & Time: Adequate packing pressure and sufficient time help push more material into the cavity to compensate for shrinkage as the part cools. This is a critical parameter to dial in.
  • Gate Location & Size: Placing gates strategically near thicker sections can help feed material to these areas longer. The gate must also be large enough not to freeze off too early.
• Flow-Induced Issues: Sometimes, if the PMMA melt front separates and rejoins turbulently or if there are sudden changes in flow path, it can create voids or flow marks. Proper injection speed profiling and smooth transitions in the mold design help here.
  I remember a project – a beautiful, thick, clear PMMA paperweight with an embedded logo. We were getting these tiny, almost invisible bubbles deep inside, near the logo. Drove us absolutely nuts! After much head-scratching, mold flow simulations, and process tweaking, we realized our vents in that specific deep area were just slightly undersized, and we needed a bit more aggressive packing phase. We also slightly increased the melt temperature to reduce viscosity. Problem solved! It’s often a combination of factors, Alex. You have to look at the part design, the mold, the process, and even the specific grade of PMMA. It’s detective work, but we usually crack the case. That’s part of the fun!

  What Specific Techniques Make CavityMold A Master Of PMMA Parts?

  Want to know our secret sauce for perfect PMMA? It’s not magic. It’s a blend of meticulous techniques, decades of experience, and a genuine passion for precision.

CavityMold excels by combining expert PMMA mold design (considering shrinkage, optical needs, venting), precise process control (temperature, pressure, speed), advanced material handling (especially drying), and rigorous quality checks including CMM and optical inspection.

Okay, Alex, you’re asking for the "secret sauce" at CavityMold for PMMA. Well, if I told you all our secrets, I’d have to… just kidding! But seriously, it’s less about one single secret and more about a holistic, systematic approach and a ton of hands-on experience. We’ve learned a lot over the years, sometimes the hard way – that’s how expertise is built!
Here’s a breakdown of what we really focus on to "Master Molding Right" with PMMA:

1. Deep Material Understanding (PMMA is a Special Beast):
   • Drying is Absolutely Critical: I can’t stress this enough. PMMA is hygroscopic; it loves to suck moisture right out of the air. If you mold wet PMMA, you’re guaranteed to get splay, silver streaks, brittleness, and reduced optical clarity. We use high-performance desiccant dryers and often verify moisture content with a moisture analyzer before molding. I once saw a competitor’s batch of expensive PMMA lenses turn cloudy and weak because they rushed the drying – a rookie mistake, but a costly one!
   • Thermal Sensitivity & Flow Behavior: PMMA can degrade if overheated or held at melt temperature for too long, leading to yellowing or reduced molecular weight. It also has a relatively high viscosity. We optimize barrel temperatures (often a very specific profile), nozzle temperature, and minimize residence time in the barrel.
   • Optical Properties Focus: For clear PMMA, avoiding any contamination (dust, other plastics), shear burn, and ensuring a flawless mold surface is non-negotiable. This means cleanroom-like conditions around the press for some jobs.
2. Mold Design Specifically Tailored for PMMA Excellence:
   • Accurate Shrinkage Compensation: PMMA has a relatively high and somewhat variable shrinkage rate (0.2% – 0.8%). We calculate this carefully for the specific grade being used and the part geometry. It’s not a one-size-fits-all.
   • World-Class Polishing and Surface Finish: As mentioned, for optical parts, we go to extreme lengths with mold polishing – often manual diamond polishing to SPI A1 or even finer optical finishes. We even consider the direction of polish lines relative to light transmission.
   • Strategic Ejection: PMMA can be a bit notch-sensitive and relatively brittle compared to, say, polycarbonate. Ejector pin placement, size, and type (sleeve ejectors, blade ejectors) are crucial to avoid marks, stress, or cracking during ejection. A smooth draw polish on cores helps too.
3. Precision Process Control – The Scientific Molding Approach:
   • We use modern injection molding machines with precise, closed-loop control for injection speed, pressures (injection and pack), and temperatures (barrel and mold).
   • We often apply principles of Scientific Molding (or Decoupled Molding) to establish a robust process window. This means separating the fill, pack, and hold phases of the process to optimize each one independently. This leads to more consistent parts.
4. Rigorous In-Process and Post-Molding Quality Assurance:
   • Case Study Snippet: We had a client, a major player in luxury automotive lighting, needing an intricate PMMA light guide. The light transmission efficiency and the uniformity of the light distribution pattern were absolutely critical – lives could depend on it! We used extensive Moldflow analysis during the mold design phase to predict fill patterns, weld lines, and optimize gate locations to minimize optical distortion. During mold trials, we used high-speed cameras to watch the fill. Post-molding, each critical dimension was verified by CMM (Coordinate Measuring Machine), and then each part underwent a specialized optical test on a custom-built rig to verify light output and distribution against the CAD model. This multi-stage QA caught a tiny, almost imperceptible flow line that was affecting light scatter by 0.5%. We tweaked the gate geometry and injection profile slightly, and boom – perfect parts. That’s "Master Molding Right" in action! It wasn’t easy, but the result was spectacular.
     It’s this relentless combination – knowing the PMMA material inside out, designing and building the mold intelligently for PMMA, controlling the molding process like a hawk, and then verifying everything meticulously. No single magic trick, just diligent, expert work, and a passion for getting it perfect. 🔥

     Conclusion

     CavityMold achieves superior PMMA precision through expert mold design, meticulous process control, and deep material understanding, consistently delivering top-quality optical and mechanical parts. We master molding right!
