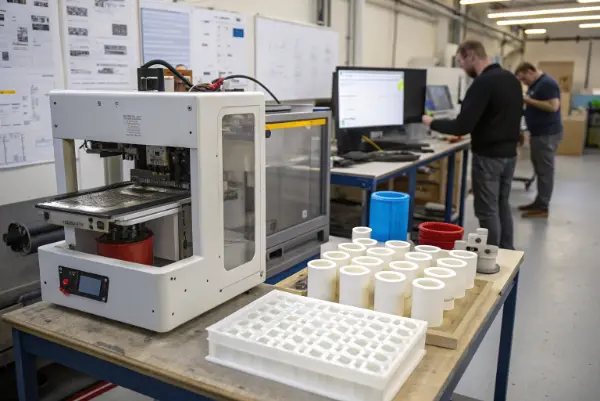

Moving from a prototype to full production is scary. You might face bad parts, wasted money, and missed deadlines. But you can make this change smooth. I will show you how to scale up your PLA and TPU parts the right way.
Scaling up PLA and TPU materials means shifting from 3D printing to injection molding. You need to adjust your mold design, control temperatures tightly, and manage material shrinkage. PLA is hard and stiff, while TPU is soft and bends easily. Handling these traits correctly ensures your parts come out perfect every time.
When I first started working with these materials years ago, I made a lot of mistakes. Let us dive into the details so you can avoid my past errors and get your production running fast.
What makes PLA and TPU different when scaling up?
You might have a great prototype, but the factory parts fail. The materials act differently under high heat and pressure. You need to know these changes before you start making molds.
PLA is a stiff plastic made from plants, while TPU is a flexible rubber-like plastic. When you move to mass production, PLA flows easily but can get brittle. TPU needs exact heat control or it will stick to the mold. You must change your mold design for each one.
I remember a project back in 2015. We tried to use the exact same mold design for both a stiff cover and a soft grip. It was a disaster. The hard parts snapped, and the soft parts stuck in the machine. That day, I learned a big lesson at CavityMold. You must treat every plastic differently. You cannot use a one-size-fits-all plan.
Knowing Your Plastics
PLA stands for Polylactic Acid. It is great for hard parts. It is strong and safe for the environment. Many people use it for toys or hard cases. But it can break easily if you make the walls too thin. TPU stands for Thermoplastic Polyurethane. It is very different from PLA. It bends and stretches. It is perfect for phone cases, watch bands, or soft grips. But it shrinks a lot when it cools down. You have to plan for this shrinkage.
Comparing the Two Materials
Here is a simple look at how they act in mass production. You need to know these facts to plan your project.
| Material | Hardness | Heat Needed | Shrink Rate | Main Use |
|---|---|---|---|---|
| PLA | Very Stiff | Low | Low | Hard shells, toys |
| TPU | Very Soft | High | High | Soft grips, seals |
You have to look closely at the shrink rate. When hot plastic cools down, it gets smaller. TPU gets much smaller than PLA. If you do not plan for this shrinkage in your mold design, your final parts will be the wrong size. They will not fit together. I always tell my engineering team to double-check the shrink rate. We want to get the part dimensions right the first time. This saves our clients time and money.
How do you fix common molding problems with PLA?
PLA parts often warp or snap during large runs. This ruins your whole batch and costs you a lot of money. You must spot these errors early to save your project.
To fix PLA molding problems, you must control the mold cooling speed and increase the wall thickness of your part. If PLA cools too fast, it warps and bends. If the walls are too thin, the part will break. Good mold design stops these issues before they start.
We once had a client from Australia who wanted to make thousands of eco-friendly boxes using PLA. The 3D printed prototypes looked great. But when we started the big molding machines, the boxes came out bent. The sides were wavy. The client was very worried. I had to step in and fix the mold cooling system to save the order.
Stopping the Warp
Warping happens when one side of the plastic cools faster than the other side. The cold side pulls the hot side. This pulls the part out of shape. To stop this, we add more cooling channels inside the metal mold. These channels carry water to cool the metal. This helps the whole part cool down at the exact same time. It is a simple fix, but it saves a lot of headaches. It keeps the parts straight and flat.
Making Parts Stronger
PLA is stiff, but it is not tough. It can shatter like glass if you drop it on the floor. We fix this by changing the shape of the part. We make the walls thicker so they can take more force. We also add curved corners instead of sharp corners. Sharp corners are weak points where cracks start.
| Problem | Why it happens | How to fix it |
|---|---|---|
| Warping | Uneven cooling | Add more water channels in the mold |
| Breaking | Sharp corners | Make corners round and smooth |
| Burn marks | Trapped hot air | Add air vents to the mold edges |
These small changes make a huge difference in mass production. I always review the part drawing to look for sharp corners before we cut any steel. This extra check keeps our clients happy and their production lines moving without unexpected stops.
What are the secrets to injection molding TPU materials?
Molding soft parts is a big headache. TPU can stick to the metal, causing delays and broken parts. You need special tricks to make this soft rubber work in big machines.
The secret to molding TPU is managing the injection speed and the mold surface. You must inject the TPU slowly so it does not trap air. You also need to add a special texture to the mold walls. This texture stops the sticky TPU from clinging to the metal.
I will never forget my first big TPU project. It was a soft handle for a heavy power tool. The first 50 parts stuck deep inside the mold. We had to pry them out by hand using tools. It took hours of hard work. We had to stop the machines entirely and rethink our whole plan. Soft materials are tricky to handle.
Controlling the Flow
TPU flows like thick syrup when it is hot. If you push it into the mold too fast, it traps air inside. This creates bubbles. These bubbles make the part look ugly and feel weak. I found that slowing down the machine solves this problem. A slow and steady push fills the mold perfectly. It pushes the air out slowly so no bubbles form.
Releasing the Part
Because TPU is soft and sticky, it loves to grab onto smooth metal. This makes it very hard to push the part out of the mold. The ejector pins are small metal rods that push the part out. If the part is too sticky, the pins can poke holes right through the soft plastic.
How to Stop Sticking
| Trick | How it helps | When to use it |
|---|---|---|
| Sandblast mold | Makes surface rough | When parts stick to flat walls |
| Bigger pins | Spreads the pushing force | Always use for soft rubber parts |
| Mold spray | Acts like oil | Quick fix for sticky machine runs |
At CavityMold, we now add a light sandblast texture to almost all our TPU molds. It makes the metal a little rough so the plastic cannot stick tight. We also use very large ejector pins. The large pins push gently on a bigger area of the soft part. It pops right out without any damage or holes.
How can you save money when moving from prototype to mass production?
Making a steel mold costs thousands of dollars. A bad design will drain your budget fast. You must find smart ways to lower costs without losing part quality.
To save money in mass production, you should simplify your part design and choose the right mold steel. Remove fancy features that need complex mold actions. Use cheaper steel for small production runs. This lowers your upfront costs and speeds up the mold-making process.
A few years ago, a young designer sent me a file for a phone case. It had deep cuts and crazy shapes on every side. I told him the mold would cost $20,000. He was shocked and upset. I sat down with him and showed him how to change the design. We removed the extra cuts. We cut the mold cost in half. He was very happy.
Keep the Design Simple
Every side-hole or clip on your part means the mold needs extra moving pieces. These moving pieces are called sliders. Sliders cost a lot of money to design and build. If you can change your design to remove them, you save big money. I always try to make parts open and close in just one straight line. This is the cheapest way to build a mold.
Pick the Right Metal
You do not always need the hardest, most expensive steel for your mold. If you only want to make 10,000 parts to test your idea, a softer steel will work fine.
| Tooling Material | Best For | Cost Level | Speed to Build |
|---|---|---|---|
| Aluminum | Prototypes, small runs | Low | Very Fast |
| P20 Steel | Medium runs | Medium | Normal |
| H13 Steel | Millions of parts | High | Slow |
I talk to my clients about their sales goals first. If they just want to test the market with a simple PLA toy, we use P20 steel. It is strong enough for the job but does not break the bank. You do not need expensive H13 steel for a small test. This is how we at CavityMold help businesses grow safely without wasting their money.
Conclusion
Moving from a prototype to mass production with PLA and TPU is a big step. You must understand how these plastics act, fix mold issues early, and keep your designs simple. With careful planning and a good partner, you can make perfect parts and save a lot of money.
