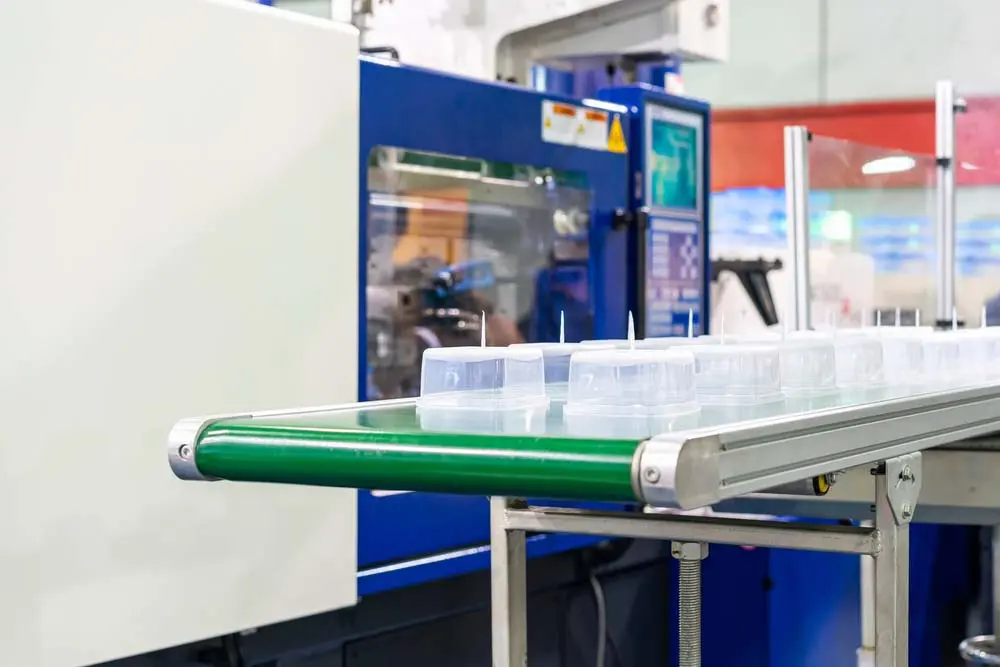

Clear plastic injection molding is a complete material, mold, process, and inspection problem—not simply a matter of polishing the cavity. Optical or cosmetic clarity can be reduced by moisture, contamination, flow fronts, weld lines, gate blush, trapped air, residual stress, uneven cooling, and mold-surface damage. The right specification depends on whether the part is a transparent housing, sight window, light guide, lens, or simply a translucent appearance part.

Choose the clear resin for the actual function
| Material family | Common reason to evaluate it | Questions before tooling |
|---|---|---|
| Polycarbonate | Impact performance and transparent structural parts | Stress, chemical exposure, UV, drying, thickness, and optical requirement |
| PMMA/acrylic | High clarity, gloss, and weathering options | Brittleness, chemical exposure, gate appearance, and surface quality |
| Transparent PS or other grades | Appearance or cost requirements for less demanding applications | Impact, stress cracking, temperature, and exact grade data |
| Specialty optical resin | Light transmission, refractive behavior, or precision optics | Optical tolerances, birefringence, surface form, and metrology method |
ENGEL notes that transparent components place high demands on processing and may require equipment and screw details adapted to materials such as PMMA, PC, or COC. See ENGEL’s transparent plastic injection molding reference when defining the process capability required by the product.
Material preparation and contamination control
Follow the selected resin supplier’s drying and storage requirements exactly. Moisture can cause splay, bubbles, haze, or reduced performance; contamination can create visible particles, streaks, or black specks. Use clean hoppers, purging procedures, protected material transfer, and controlled handling of regrind. If optical quality is critical, define an allowable contamination and appearance standard rather than relying on the word “clear.”
Part and mold design for clarity
Wall thickness and flow
Uniform wall thickness helps the flow front and cooling remain predictable, but optical parts can intentionally have changing thickness. Those transitions must be analyzed because they can change fill pressure, shrinkage, stress, and light transmission. Locate gates so the flow path and weld lines do not cross the critical viewing or optical aperture. Provide adequate venting where air would be trapped.
Steel finish, parting line, and ejection
The cavity and core finish must match the required visual or optical specification. Polishing a non-optical surface to an unnecessarily high finish can add cost without improving function, while an optical surface may require carefully controlled polishing, protection, and inspection. Keep parting lines, ejector marks, slides, and gate vestiges away from critical apertures where the design permits.
Process controls that reduce haze and distortion
- Use a stable melt-temperature and injection-speed profile that avoids excessive shear and hesitation.
- Control mold temperature and cooling balance to reduce residual stress and differential shrinkage.
- Set packing and gate-freeze decisions from part weight and dimensional data, not appearance alone.
- Protect the cavity from scratches, residue, corrosion, and handling damage during mold maintenance.
- Inspect parts after conditioning or aging when the product may develop stress whitening, cracks, or distortion later.
For optical work, dimensional inspection alone is not sufficient. Define haze, transmission, distortion, birefringence or stress limits where relevant, and establish the viewing angle, lighting, background, and sample size for visual inspection. Protolabs explains why a part can be moldable yet still contain optical flaws; see its design tips for injection-molded optical applications.
Clear plastic RFQ checklist
- Resin family, exact grade, color or tint, UV or chemical exposure, and drying requirements.
- Transparent, translucent, cosmetic, or optical requirement with measurable acceptance criteria.
- Critical aperture, surface finish, allowable gate and parting-line locations, and weld-line restrictions.
- Part thickness map, tolerances, flatness or form requirements, and any post-mold conditioning.
- Inspection method for haze, particles, bubbles, flow marks, stress, dimensions, and function.
Discuss the complete path with Cavity Mold’s engineering service, mold-making service, and injection molding service. Contact the team with the CAD, resin, optical or cosmetic specification, annual volume, and inspection method so the mold and process can be quoted to the real requirement.
