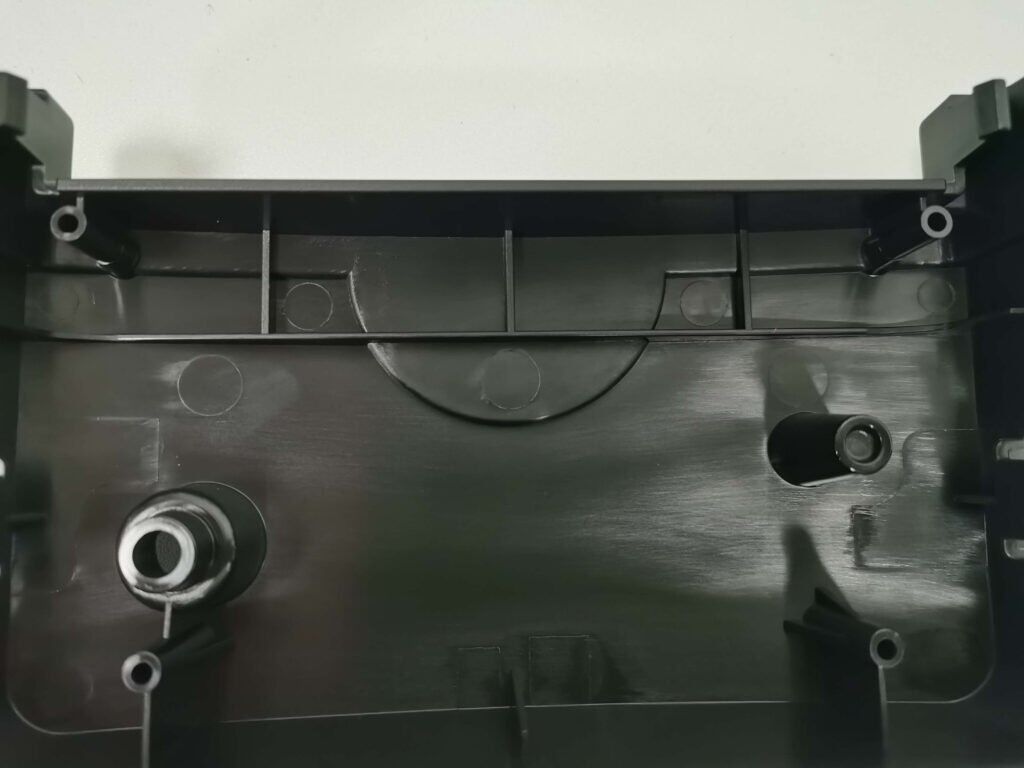

Ejector pin marks are witness marks caused when the ejection system transfers force into a part that is still resisting release or is not supported adequately. The visible result may be a circular depression, raised witness, whitening, gloss change, or local distortion.
Do not assume the pin is the only cause. Sticking, insufficient draft, uneven cooling, excessive packing, thin walls, poor pin placement, a rough cavity, or a part that is too hot at ejection can all increase the load on the ejector system.
First identify the defect
| Appearance | Possible mechanism | First check |
|---|---|---|
| Round witness at an ejector location | Local ejection force or pin deformation | Pin size, position, support wall, alignment, and sticking |
| White stress around a pin or rib | Part is too cold, too stiff, or released with excessive force | Draft, cooling balance, ejection timing, and packing |
| Broad depression over a boss | Sink or local shrinkage rather than a pin mark alone | Wall-to-boss ratio, packing, gate freeze, and cooling |
| Scuff or drag across a wall | Insufficient draft, texture lock, or rough steel | Pull direction, surface finish, and core release |
Cause-and-fix sequence
- Confirm the mark aligns with the ejector pin, sleeve, blade, or stripper feature.
- Check whether the part is sticking to the core or cavity and whether the mold opens on the intended side.
- Review draft, texture, wall depth, ribs, bosses, and any reverse undercuts.
- Check ejection timing, speed, force, return position, pin alignment, and lubrication.
- Review cooling and part temperature at ejection; verify that reducing cooling does not increase deformation.
- Adjust packing only within a validated window, then measure weight, dimensions, and appearance.
Part and mold design solutions
- Increase practical draft or change the pull direction where the part allows it.
- Distribute ejection force across a larger area with more pins, sleeves, blades, or a stripper system.
- Place pins under ribs or supported areas instead of thin cosmetic walls when possible.
- Core out thick bosses and maintain more uniform wall thickness to reduce local shrinkage.
- Improve polish, remove burrs, correct misalignment, and repair worn pins or bushings.
- Use replaceable ejector inserts where a high-wear feature needs routine service.
Process checks
Excessive hold pressure can increase cavity pressure and sticking. Insufficient cooling can leave the part too soft; excessive or unbalanced cooling can increase shrinkage and make release uneven. Ejection speed should be high enough for stable motion but low enough to avoid shock and local deformation.
Make one controlled change at a time. If the mark disappears after reducing packing, check dimensions and sink. If it disappears after increasing cooling, confirm cycle cost and warpage. If a pin is moved or enlarged, verify steel strength, wall support, and the visible surface.
Acceptance and inspection
Define which ejector witness marks are acceptable by cosmetic zone, maximum size, depth, gloss change, and functional location. Use a master sample or approved limit sample when appearance matters. Record the pin layout and inspection results in the mold documentation so a future repair does not change the product without review.
The [injection molding team](/injection-molding/) can structure the defect trial, while the [mold-making team](/mold-making/) checks the ejection mechanics and steel. [Contact Cavity Mold](/contact/) with photos, mark locations, resin grade, and cycle data for a root-cause review.
Technical reference
The Covestro defect-prevention guide lists ejector marks alongside pressure, mold rigidity, cooling, draft, undercuts, and mold-finish conditions.
Diagnose the force behind the witness
Record the mark as a raised witness, depression, whitening, crack, or gloss change, and compare it with the ejector layout, core, draft, texture, cooling, and vacuum condition. A larger pin is not automatically the right correction if the part is sticking or the core is deflecting.
- Check draft, texture direction, ribs, bosses, undercuts, and core polish.
- Review whether pins support the wall or push through a flexible area.
- Check ejection timing, speed, return, lubrication, and part condition.
- Inspect for blocked vents, contamination, burrs, or damaged pins.
Use a repeatable cosmetic and functional limit. If a pin moves, record support and recheck flatness, stress, flash, and cycle. BASF’s defect guidance supports classification; the actual correction belongs to the mold and part together.
