How Does CAVITYMOLD Tackle the Pesky Limitations of Injection Molding?

Feeling stuck with injection molding challenges that seem impossible to solve? These limitations can derail projects and inflate costs. But there’s always a way forward with smart strategies.
CAVITYMOLD overcomes limitations by optimizing mold design, refining process parameters, using appropriate materials, and applying systematic troubleshooting to ensure top-quality parts and efficient production.
You know, in all my years with CAVITYMOLD, helping folks like Jacky turn their brilliant product designs into reality, I’ve seen my fair share of "impossible" molding problems. The truth is, injection molding, for all its wonders, isn’t without its quirks and limitations. But as our slogan says, we "Master Molding Right." That means not just making molds, but understanding the whole process deeply enough to anticipate and overcome these hurdles. My insight is that it all boils down to a smart combination of mold design, process control, and good old-fashioned problem-solving. Let’s dive into how we approach some of these common sticking points, shall we?

What Are the Limitations of Reaction Injection Molding (RIM) We Should Be Aware Of?

RIM sounds innovative, but what are the hidden downsides? Unforeseen complexities with RIM can easily stall your projects and unexpectedly drive up your production costs if you’re not careful.
Reaction Injection Molding (RIM) limitations include potentially slower cycle times than thermoplastic injection molding, specific challenges with highly complex geometries, and often higher material costs. Careful planning is essential.
!

Diving Deeper: Understanding the Trade-offs with RIM

Reaction Injection Molding, or RIM, is a pretty cool process. Instead of just melting and injecting plastic, you’re mixing two reactive liquid components (like polyurethanes or epoxies) that then undergo a chemical reaction right there in the mold to form the part. It’s great for large, lightweight, and strong components – think automotive bumpers or equipment housings. But, like anything, it’s not a magic bullet.

• ### Cycle Time Realities – It's Not Always a Racehorse:
  One of the first things to understand is that the chemical curing process in RIM takes time. It’s not like a thermoplastic material that just needs to cool down and solidify. This "in-mold cure time" means RIM cycle times are generally longer than what you’d get with conventional thermoplastic injection molding. I remember a potential client, let’s call him Dave, who was super enthusiastic about using RIM for a series of large decorative panels. He’d heard RIM was "fast" for large parts, but he was comparing it to other thermoset processes, not necessarily high-speed thermoplastic injection. We had a good chat, and I helped him see that for his specific annual volume, the cycle time difference really mattered. We had to carefully weigh if the structural benefits of RIM offset the slower production rate. It’s all about that upfront, honest assessment.
• ### Material Costs and Choices Can Be a Factor:
  The liquid thermosetting resins used in RIM are often more specialized and, frankly, can be more expensive per pound than many common thermoplastics. Plus, the range of available RIM materials, while growing, isn’t quite as vast as the thermoplastic universe. This means sometimes a designer, even someone as experienced as Jacky, might have to make slight compromises on very specific material properties if RIM is the chosen manufacturing route.
• ### Tooling: A Bit of a Mixed Bag:
  Now, one potential advantage of RIM is that because the injection pressures are much lower than in thermoplastic molding, molds can sometimes be made from less expensive materials like aluminum, instead of hardened steel. This can lead to lower tooling costs, which is attractive. However, it’s not always a straight win. The reactive chemicals themselves can sometimes be a bit aggressive towards certain mold materials, potentially affecting long-term tool life if not properly considered.
• ### Navigating Complexity and Flow:
  While RIM is excellent for large, relatively simple shapes, creating extremely intricate details or very, very thin wall sections can present challenges. The reacting liquid mixture needs to flow and fill the entire cavity completely before it starts to gel and cure. Managing this flow to avoid air traps, voids, or incomplete fills, especially in complex geometries, requires careful mold design and process control.
• ### Our CAVITYMOLD Strategy for RIM Success:
  When a client is considering RIM, we sit down and go through these points. If the unique advantages of RIM – like producing large, strong, yet lightweight parts with good surface finish – truly align with the application’s needs and outweigh these limitations, then it can be a fantastic choice. Our role at CAVITYMOLD then becomes laser-focused on optimizing the mold design specifically for that RIM material system. This includes precise gate locations, ensuring robust venting for the chemical reaction byproducts, and designing effective temperature control within the mold to promote a consistent and thorough cure. It’s about setting realistic expectations and then engineering for success.

  How Can We Effectively Reduce Cavity Pressure in Injection Molding?

  Is high cavity pressure causing frustrating flash or putting undue stress on your valuable mold? This often-unseen force can be a silent saboteur, leading to part defects and premature tool wear.

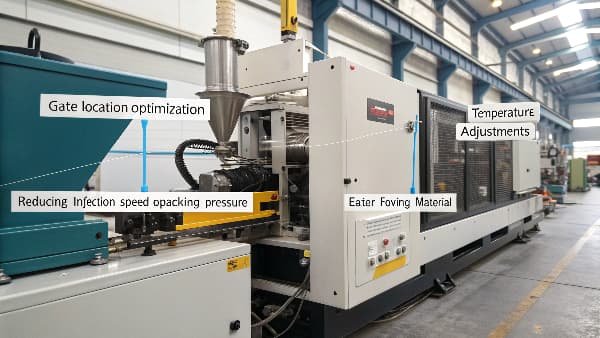

  Reduce mold cavity pressure by optimizing gate location and size, increasing melt or mold temperature, reducing injection speed or packing pressure, or selecting an easier-flowing material. Proper mold venting also significantly helps.

Diving Deeper: Taming the Pressure Inside Your Mold

Cavity pressure – it’s the pressure of the molten plastic inside the mold cavity during the injection and packing phases. You absolutely need some pressure to properly fill the mold, replicate all the fine details of the design, and compensate for shrinkage as the plastic cools. But, like so many things in molding, too much of a good thing can be a real problem! Think of it like trying to inflate a delicate balloon; just enough air makes it perfect, but too much, and you’re asking for trouble – pop! Or, in our world, you get defects like flash (where plastic squeezes out of the mold), excessive stress on the mold components, or even issues like part warpage due to locked-in stress. It’s a critical parameter that we at CAVITYMOLD constantly monitor and manage.

• ### Key Levers We Systematically Adjust at CAVITYMOLD:
  When Jacky brings us a design that might be prone to high cavity pressure, or if we see it spiking during initial trials, we have a whole toolkit of adjustments we can make. My insight about CAVITYMOLD’s focus on optimizing the molding process and mold design is central here.
  • Material Flow Characteristics: One of the very first things we’ll discuss with Jacky is the material’s Melt Flow Index (MFI) or Melt Flow Rate (MFR). A material with a higher MFI generally flows more easily, like thin honey versus thick molasses. Switching to an easier-flowing grade of the same polymer, if the application allows, can naturally lower the pressure needed to fill the cavity.
  • Temperature Adjustments (Carefully!): Gently increasing the melt temperature (the temperature of the plastic in the barrel) or the mold surface temperature can reduce the plastic’s viscosity, making it flow more readily. This, in turn, can lower the required injection pressure. But – and this is a big "but" – you have to stay well within the material manufacturer’s recommended processing window to avoid degrading the plastic. Pushing temps too high is a recipe for other problems!
  • Gate Design and Location are Paramount: The gate is the doorway for the plastic into the cavity. If it’s too small, it’s like trying to force a river through a garden hose – pressure skyrockets. We might need to enlarge the gate, change its type (e.g., from a restrictive pin gate to a more generous tab or fan gate), or strategically add more gates for a larger or more complex part. This helps distribute the flow and reduce the peak pressure at any single point. This is a core part of "adopting appropriate mold design" from my insights.
  • Runner System Optimization: The runners are the channels that deliver plastic from the machine nozzle to the gates. If these are too narrow, too long, or have sharp, restrictive turns, they add to the overall pressure required. We design runners for efficient, low-resistance flow.
  • Injection Speed and Packing Profile: Sometimes, reducing the injection speed can lower cavity pressure. However, this has to be balanced carefully, as too slow a speed can cause other issues like short shots (incomplete parts) or ugly flow marks. The packing pressure and time (the pressure applied after the cavity is mostly full to compensate for shrinkage) also play a huge role. Fine-tuning these can significantly impact final cavity pressure.
  • Venting is Your Friend: If air gets trapped inside the mold cavity as the plastic rushes in, it gets compressed and fights back against the flow, effectively increasing the pressure needed to fill the part. Excellent venting – tiny channels that let air escape but not plastic – is absolutely crucial. This is a non-negotiable for us at CAVITYMOLD.
    I recall a project involving a tricky, thin-walled enclosure. The cavity pressure was consistently too high, causing occasional flash. We did a quick mold flow simulation, identified a better gate location, and slightly increased the gate size. The result? Pressure dropped into the optimal range, and the flash disappeared. It’s often a combination of these adjustments, guided by experience and data.

    When Problems Strike, How Do You Solve Injection Molding Issues Systematically?

    Are mysterious defects suddenly appearing in your molded parts, causing chaos on the production floor? Just randomly tweaking machine settings often makes things worse, wasting valuable time, material, and energy.
    Solve injection molding problems by first accurately identifying the specific defect. Then, systematically investigate potential causes related to material, mold, machine, or process parameters, changing only one variable at a time to observe results.

Diving Deeper: Our "Molding Detective" Approach at CAVITYMOLD

When a defect suddenly pops up – maybe it’s flash, or sink marks, or parts are warping unexpectedly – the temptation for some is to immediately start fiddling with every knob on the molding machine. I’ve seen it happen! But that’s usually a fast track to making things even more confusing. You might fix one problem and accidentally create two new ones. At CAVITYMOLD, our entire philosophy, as I mentioned in my initial insights, revolves around a systematic and optimized approach to both mold design and the molding process itself. This naturally extends to how we tackle problems. It’s less about frantic adjustments and more about methodical investigation, much like how Jacky would meticulously debug a complex CAD model if it wasn’t behaving as expected.

• ### The Four Pillars of Our Problem-Solving Framework (The 4Ms):
  Whenever a new challenge arises, we mentally (and often physically, with a checklist!) run through these key areas:
  1. Material: Is it the correct grade of polymer specified for the job? This sounds basic, but mix-ups happen! Crucially, especially for engineering plastics like Nylon, Polycarbonate, or ABS, has it been dried properly? Moisture is a notorious culprit for a host of defects like splay marks or brittleness. I remember one particular instance where we chased splay marks on a PC part for what felt like an eternity. It turned out the material handler had inadvertently skipped a drying cycle on one batch. Lesson learned: always verify the basics! We also check for any signs of contamination.
  2. Mold: This is where our deep expertise at CAVITYMOLD truly comes into play. Is the mold clean, especially the cavity surfaces, vents, and parting line? Are all the vents clear and not peened over or blocked by previous flash? Is the cooling system functioning correctly and providing uniform temperature across the mold faces? Is there any visible wear, damage, or misalignment of mold components like core pins or slides? "Adopting appropriate mold design" from my initial insights means we aim to design out many potential problems from the start, but ongoing mold maintenance is also key.
  3. Machine: Is the injection molding machine itself performing correctly? Are the barrel and nozzle temperatures accurate and stable? Is the screw recovering consistently? Is the clamp force set appropriately for the mold size and injection pressure? Is the nozzle clear, or could there be a partial blockage or a worn tip?
  4. Process (or Method): This is where we look at the actual settings used for molding. Are the injection speeds, pressures, switchover point (from fill to pack), packing pressures and times, holding times, and cooling times all optimized for this specific part and material? Often, a carefully considered tweak to one of these parameters, based on a clear understanding of the defect’s cause, can resolve the issue.
• ### The Golden Rule: One Change at a Time!
  I absolutely cannot stress this enough. If you adjust, say, the injection speed and the mold temperature and the packing time all at once, and the defect magically disappears – which of those changes was the actual fix? You’ll never know for certain. Worse, one change might have helped while another coincidentally made a different, unseen aspect worse, with the net effect being an apparent improvement. We always, always advocate for changing only one variable at a time, running a sufficient number of shots to see the effect, and then meticulously observing and documenting the results.
• ### Data, Data, Data – Your Best Ally:
  We are big believers in keeping detailed process setup sheets and production logs. If a problem suddenly arises on a job that was running fine yesterday, the first question is: "What changed?" Having good historical data often provides the quickest clues.
  This systematic, data-driven approach, which combines our in-depth knowledge of mold design with a thorough understanding of polymer behavior and process dynamics, is how we at CAVITYMOLD consistently overcome what might initially seem like stubborn or insurmountable injection molding limitations. It’s not about guesswork; it’s about applied engineering and experience.

  What Exactly is Cavitation in Injection Molding and Why Should I Care?

  Heard the term "cavitation" thrown around but unsure what it means for your molds and parts? This subtle, often invisible issue can silently degrade your valuable tooling over time.
  Cavitation in injection molding is the formation and rapid collapse of tiny vapor bubbles within the molten plastic. This occurs due to localized pressure drops, leading to micro-erosion of mold surfaces.

Diving Deeper: The Silent Erosion of Cavitation

Cavitation – it sounds like something you’d associate with ship propellers churning through water or maybe industrial pumps, right? And you wouldn’t be wrong. But guess what? This same phenomenon can absolutely occur inside an injection mold, and it can be a real long-term pain if it’s not understood and managed. It’s a bit of a sneaky villain because you might not immediately see its effects on the molded parts themselves, especially in the early stages. Instead, it’s silently, microscopically eating away at the surface of your expensive mold steel!

• ### How These Tiny Bubbles Cause Big Problems:
  So, what’s happening?
  1. Sudden Pressure Drops Create Bubbles: When molten plastic is forced to flow at very high speeds through restrictive areas in the mold – think sharp corners, undersized gates, or past abrupt changes in cross-section – the local pressure of the plastic can drop dramatically and very suddenly. If this pressure dips below the vapor pressure of any volatile components within the plastic resin (like moisture, trapped air, or even some low-molecular-weight fractions of the polymer itself), tiny vapor bubbles or "cavities" will form in that low-pressure zone.
  2. The Violent Implosion: Here’s the damaging part. As these newly formed bubbles travel with the flowing plastic into a region of higher pressure just downstream, they become unstable and collapse – or implode – with incredible violence. Each implosion is minuscule, a microscopic event. But, these implosions generate highly localized shockwaves and can even create tiny, high-velocity micro-jets of plastic.
• ### The Slow and Steady Damage to Your Mold:
  Over thousands, or even millions, of molding cycles, these repeated micro-implosions act like tiny, relentless hammers pounding away at the mold steel surface. Eventually, you’ll start to see physical evidence:
  • Pitting or Erosion: The mold surface, especially in areas prone to cavitation (typically near gates, sharp edges, or where flow paths constrict and then expand) will develop a pitted, rough, or "eaten away" appearance.
  • Degraded Part Surface Finish: As the mold surface erodes, the surface finish of your plastic parts will also degrade in those areas. What was once a glossy, smooth finish might become dull or textured.
  • Dimensional Changes: In severe cases, the erosion can be significant enough to alter the critical dimensions of the mold cavity or core features, leading to out-of-spec parts.
  • Increased Mold Maintenance and Repair: Ultimately, cavitation leads to more frequent and costly mold repairs or even premature replacement of mold components. Jacky once showed me a set of core pins from a high-volume job that looked like they’d been minutely sandblasted around the gate area – a classic, and costly, example of cavitation damage that had developed over time due to a slightly too-aggressive gate design for that particular material and flow rate.
• ### How We Proactively Combat Cavitation at CAVITYMOLD:
  Preventing cavitation is a key consideration in our mold design philosophy at CAVITYMOLD, aligning perfectly with my insight about "optimizing mold design."
  • Designing for Smooth Flow: We strive to create flow paths within the mold that are as smooth and gentle as possible. This means avoiding unnecessarily sharp corners and using generous radii wherever the plastic has to change direction.
  • Intelligent Gate Design and Location: The design and placement of gates are absolutely critical. We carefully size gates and try to position them to minimize abrupt velocity changes and severe pressure drops that can trigger cavitation.
  • Material Considerations: We know that some plastic materials are inherently more prone to outgassing or contain more volatile components, making them more susceptible to cavitation. This is factored into our design and process recommendations.
  • Process Parameter Optimization: While design is key, process settings also play a role. Excessively high injection speeds can definitely exacerbate cavitation. Sometimes, a carefully controlled reduction in injection velocity in critical fill areas can make a significant difference without compromising part quality.
    Cavitation might be a less obvious "limitation" than something like flash or warpage, which you can see immediately. But it’s a serious long-term threat to the health of your mold and the consistency of your parts. It’s one of those "behind-the-scenes" issues that we’re always vigilant about at CAVITYMOLD, because "Mastering Molding Right" means thinking about the long game too!

    Conclusion

    Overcoming molding limits isn’t about luck; it’s smart design, optimized processes, and expert troubleshooting. CAVITYMOLD helps you navigate these challenges, ensuring high-quality parts every time.
