How Can You Effectively Prevent, Detect, and Remediate Common Injection Molding Defects?

Frustrated by flawed parts ruining your production runs? Defects mean wasted material, time, and money, hitting your bottom line. Understanding common defects is key to flawless injection molding.

Key injection molding defects include burn marks, flash, and warpage. Prevention involves proper mold design (like venting for burns), process control (adjusting pressure for flash), and material selection (managing shrinkage for warpage).

I’ve been in this molding game for a long time with CavityMold, and if there’s one thing I’ve learned, it’s that defects are part of the journey. But they don’t have to be the destination! When product designers like Jacky bring us a challenge, we tackle it head-on. It’s all about knowing what to look for and how to react. So, let’s break down some of these pesky problems, shall we?

What Are the Most Common Culprits Among Injection Molding Defects?

Unsure what flaws to even look for in your molded parts? Ignoring these can lead to customer complaints and rejected batches. Knowing common defects helps you spot them early.
The usual suspects are burn marks from trapped air, flash from excess material, warpage from uneven shrinkage, sink marks, short shots, and weld lines. Early detection is crucial.

Diving Deeper: Identifying the Rogues’ Gallery of Defects

When Jacky and I review a first-off-tool sample, we’re like detectives looking for clues. There’s a whole rogue’s gallery of potential defects we’re on the lookout for. It’s not just about aesthetics; these flaws can seriously impact how a part performs.

• ### The Usual Suspects: Beyond the big three I’ll dive into later (burns, flash, warpage), we also often see:
  • Sink Marks: These are those annoying little depressions you might find on the surface, usually opposite thicker sections like ribs or bosses. They happen because of localized, excessive shrinkage as the plastic cools.
  • Short Shots: This is when the mold cavity doesn’t fill completely, so you end up with an incomplete part. It could be due to not enough material being injected, low pressure or speed, or even something blocking the flow path in the mold.
  • Weld Lines (Knit Lines): You’ll see these as visible lines where two or more flow fronts of molten plastic meet but don’t quite manage to fuse together perfectly. These can be real weak points in the part.
  • Flow Lines: These look like streaky patterns on the part surface. They often point to issues with the melt temperature being off or the injection speed not being quite right.
  • Voids: These are internal bubbles or empty spaces within the part. They’re usually caused by trapped air that couldn’t escape or localized shrinkage in thick sections, hidden from view but potentially compromising strength.
• ### Why They Matter So Much:
  These aren’t just cosmetic blemishes, you know. A sink mark might not just look bad; it could be a stress concentration point waiting to cause a failure. A short shot is obviously a reject. And those weld lines? They can seriously compromise the structural integrity of a component. That’s why at CavityMold, our quality control is super thorough. Identifying the type of defect is always the very first step to figuring out why it’s happening. It’s like a doctor needing to diagnose an illness before they can even think about prescribing the right medicine. It’s all about precision.

  Why Do Ugly Burn Marks Appear on My Molded Parts?

  Seeing black or brown scorch marks on your beautiful plastic parts? Burn marks indicate a process problem and can weaken the part. Understanding trapped air is key to eliminating burns.

Burn marks are caused by trapped, compressed air overheating and charring the plastic. Proper mold venting is the primary solution, allowing air to escape as the melt front advances.

Diving Deeper: Extinguishing Those Fiery Burn Marks

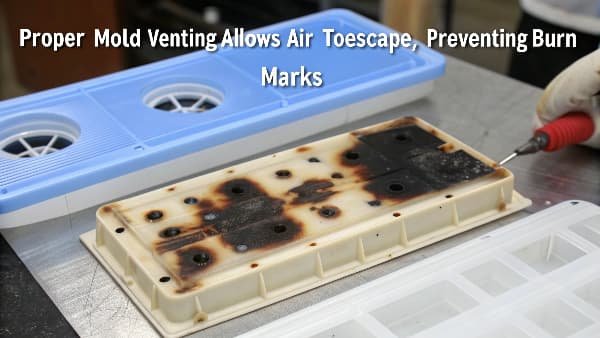

Ah, burn marks. Those nasty little discolored spots, usually found at the end of the fill path or tucked away in deep ribs or corners. I remember Jacky once had a design for an electronics enclosure with these really intricate, deep features. The initial samples were a disaster – burns in almost every tight corner! He was pulling his hair out, I tell ya!

• ### The Science Bit (But Let's Keep it Simple!): When molten plastic is injected into the mold cavity at high speed, it pushes out the air that’s already in there. Now, if that air can’t escape fast enough through proper channels, the rapidly advancing plastic front compresses it. Think of a diesel engine – air under high compression gets incredibly hot. Hot enough to actually scorch or burn the plastic it comes into contact with. And voilà, that’s your burn mark. It’s basically superheated, trapped gas.
• ### My Go-To Solution: Venting, Venting, and More Venting! As I mentioned in my initial thoughts, the number one cause of burn marks is almost always inadequate venting in the mold.
  • What is Venting, Anyway? Vents are essentially tiny escape channels. They’re usually very shallow grooves, maybe just 0.0005" to 0.002" (that’s about 0.013mm to 0.05mm) deep, machined into the parting line of the mold or sometimes incorporated via special vent pins. The idea is they’re small enough to let the air out but too small for the viscous molten plastic to escape (well, mostly!).
  • Where Do You Put These Vents? It’s critical to place vents at the last points in the cavity to fill and anywhere else you suspect air might get trapped. For really tricky spots, like those deep ribs Jacky was struggling with, we at CavityMold will often design in special venting inserts or even use porous mold components. These provide a much more efficient pathway for that trapped air to make a quick exit. It’s all about giving the air a dedicated, easy escape route so it doesn’t end up fighting with the incoming plastic. We also double-check if the injection speed is too high, as that can definitely make the problem worse by not giving the air enough time to get out. It’s a bit like making sure the mold can breathe properly. Without good lungs, it just chokes!


    How Can I Stop Annoying Flash From Ruining My Parts?

    Thin webs of unwanted plastic (flash) appearing on your part edges? Flash requires costly manual trimming and indicates mold or process issues. Proper clamp force and mold maintenance are vital.

Flash is excess plastic forced out of the cavity, often at the parting line. It’s typically caused by insufficient clamp force, excessive injection pressure/speed, or worn/damaged mold surfaces.

Diving Deeper: Sealing the Leaks to Prevent Flash

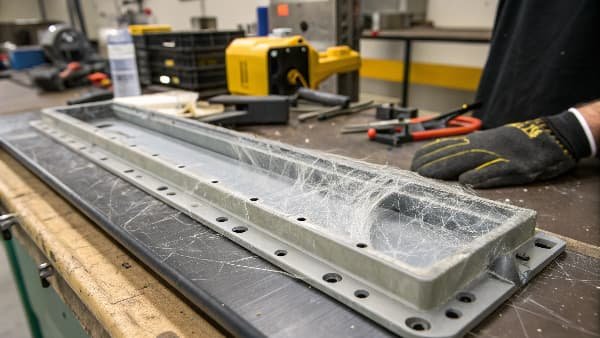

Flash – oh, that thin, unwanted film of plastic that seems to magically seep out of the mold cavity where it shouldn’t. It’s like the mold itself has sprung a leak! It’s a really common headache in this business, and one we always aim to stamp out quickly at CavityMold. Jacky often brings this up when we’re commissioning a new tool, wanting to ensure we’ve got all our ducks in a row.

• ### The Usual Suspects Causing the Mess:	Cause	Why it’s Happening
  Insufficient Clamp Force	The molding machine just isn’t holding the two halves of the mold together tightly enough against the immense pressure of the injected plastic. Think of it like a weak handshake.
  Excessive Injection Pressure/Speed	Too much force is being used to push the plastic in. It’s like trying to pour a whole bucket of water too fast into a tiny funnel – it’s going to overflow.
  Worn or Damaged Parting Lines	The surfaces where the mold halves meet don’t seal perfectly anymore, maybe due to wear and tear over time or accidental damage. Little gaps appear.
  Too-Deep Vent Channels	This was in my insights! If the vents designed to let air out are machined too deep, the plastic can sneak out along with the air. It’s a fine balance.
  Obstructed Normal Vents	If the regular air vents are blocked (say, by dirt or previously flashed material), pressure builds up inside the cavity and can force plastic out wherever it finds a weak spot.

• ### Our Troubleshooting Approach – Step by Step:
  When we spot flash, we first check the simple stuff. Is the mold surface perfectly clean? Are the clamp force settings and injection parameters (pressure, speed) actually correct for this specific material and part design? My earlier insight about reducing injection pressure is often one of the first things we try, and it can be a surprisingly quick fix. If it turns out the vents are too deep, perhaps because someone got a bit carried away during a previous maintenance session, we might need to adjust them – very carefully, of course! Sometimes, though, flash is a clear sign that the mold itself needs a bit of TLC, like having its parting lines refitted or re-ground. It’s always a balancing act; you need enough pressure and flow to fill the part completely and pack it out, but not so much that the plastic starts looking for escape routes.

  What’s Causing My Parts to Warp and How Do I Fix It?

  Parts coming out of the mold twisted or distorted, not flat as designed? Warpage means parts won’t assemble correctly, leading to frustrating scrap and delays. Uniform cooling and smart design are key.

Warpage is dimensional distortion due to uneven shrinkage rates as the plastic cools. It’s often caused by non-uniform wall thickness, inconsistent mold temperatures, or extreme fill speeds influencing molecular orientation.

Diving Deeper: Straightening Out Those Twisted Parts

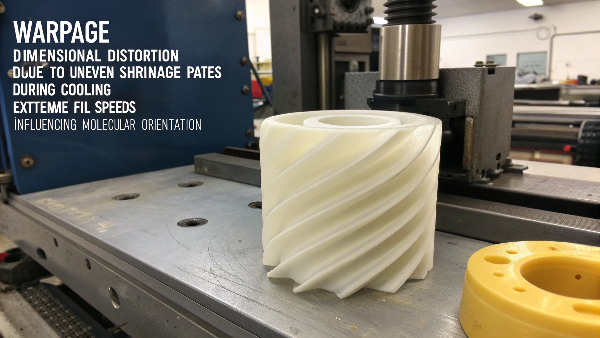

Warpage is a really sneaky one, let me tell you. A part can look absolutely perfect when it first comes out of the mold, all shiny and to spec. Then, as it sits there cooling down to room temperature, it starts to twist itself into a pretzel right before your eyes! Jacky had a project once for a long, thin cover plate, and boy, did we battle warpage on that one initially! It was a real head-scratcher for a bit.

• ### The Root of the Twist: It's All About Uneven Shrinkage
  Plastic, by its very nature, shrinks as it cools and solidifies. That’s just physics. The problem arises when one part of the component shrinks more, or faster, than another part. This creates internal stresses that build up within the material. Once the part is ejected from the mold and is no longer constrained by the steel cavity and core, these built-up stresses relieve themselves by, well, warping and distorting the part.
  • Design Factors are Huge: As I’ve probably mentioned in other posts (because it’s so important!), non-uniform wall thickness is a HUGE culprit. Thicker sections of a part will cool much slower and therefore shrink more over a longer period than thinner sections. This differential is a recipe for warpage.
  • Processing Factors Play a Big Role Too:
    • Mold Temperature: If there’s uneven mold surface temperature – for example, one side of the mold is significantly hotter or colder than the other – you’re going to get differential cooling and, you guessed it, warpage.
    • Fill Speed: My insight mentioned that too slow a fill speed can sometimes cause warpage. This is often because the molten plastic starts to freeze off in the thinner sections before the thicker sections are properly packed out, leading to varied stress levels. Interestingly, sometimes too fast a fill can also induce stress and lead to warpage by aligning the polymer molecules in odd ways. It’s about finding that ‘Goldilocks’ sweet spot.
    • Packing Pressure and Time: Insufficient packing pressure or holding time can lead to more overall shrinkage and a higher likelihood of warpage, as the part isn’t dense enough.
  • Material Choice Matters: Some plastic materials, especially semi-crystalline ones like Polypropylene (PP) or Nylon (PA), naturally have higher and more variable shrinkage rates. This makes them inherently more prone to warp if everything else isn’t perfect.
• ### Our Strategy for Straightening Things Out:
  For Jacky’s challenging cover plate, we ended up doing a few things. We tweaked the cooling channel layout within the mold to achieve more uniform temperature distribution across the part. We also carefully adjusted the fill speed and, crucially, added some subtle, strategically placed ribs to the design. These ribs improved the overall stiffness of the plate without adding much material mass or creating new thick sections. Sometimes, for really critical parts that demand flatness, post-molding cooling fixtures are needed to hold the part in shape as it fully cools. It’s often a combination of tweaking the part design, selecting the right material, and fine-tuning the process parameters. It can feel like detective work!

  Beyond Specific Defects, How Do You Generally Troubleshoot Injection Molding Issues?

  Facing a mysterious molding defect and unsure where to even start looking? Randomly changing parameters can make things worse, wasting valuable time and material. A systematic approach is essential.

Effective troubleshooting involves identifying the defect accurately, understanding its potential causes (material, mold, machine, process), and then methodically changing one variable at a time while observing the results.

Diving Deeper: The Art and Science of Molding Forensics

When a new defect suddenly pops up out of nowhere, or an old one that you thought you’d fixed decides to resurface, it’s so tempting to just start twisting knobs and pushing buttons on the molding machine. I’ve seen it happen countless times! But that’s usually a recipe for more confusion, not less. You can easily chase your tail for hours. At CavityMold, we try to be much more methodical about it, a bit like how Jacky meticulously debugs a complex CAD model when something’s not quite right.

• ### Our Systematic Sleuthing – The CavityMold Way:
  1. Define the Problem Clearly and Precisely: What exactly is the defect? Is it flash, a sink mark, a burn? Where on the part does it occur consistently? How often is it happening – every shot, or intermittently? The first step is to get good samples of the defect and really study them.
  2. Gather All Relevant Data: Check all the process parameters. What are the actual melt and mold temperatures, injection pressures, speeds, and cycle times? Are they at their setpoints? Have they drifted since the last good run? Document everything.
  3. Brainstorm Potential Causes (We use the 4Ms Framework):
     • Material: Is it the correct grade of plastic? Critically, if it’s a hygroscopic material (like Nylon or PC), has it been dried properly? Is there any chance of contamination?
     • Mold: Is the mold clean, especially the cavity surfaces and vents? Are all vents clear and not hobbed over? Is there any visible damage to the parting lines or core pins? Is the cooling system working correctly and uniformly?
     • Machine: Is the nozzle clear, or could there be a blockage? Are all the heater bands on the barrel working correctly? Is the machine providing the correct clamp tonnage for this mold?
     • Man (Operator/Process Setup): Were any settings changed recently by an operator? Was the correct startup or shutdown procedure followed? Are there inconsistencies between shifts?
  4. Isolate and Test – This is Key! Once you have a list of potential causes, change one thing at a time. This is so important. If you change the fill speed AND the mold temperature, and the defect goes away, which change actually fixed it? Maybe one change made it better and the other coincidentally made it worse, netting out to an improvement! You won’t know.
  5. Document Everything Meticulously: Keep detailed records of any changes you make and the results you observe. This builds an invaluable knowledge base for the future and helps you (and us!) solve similar problems faster next time.
     It’s all about being patient, observant, and analytical. Sometimes the root cause is something totally surprising. I remember one time we chased a persistent flow line issue for ages, and it turned out to be a tiny, almost invisible piece of hardened plastic stuck deep inside a sprue bushing – something completely unexpected that was disrupting the melt flow just enough to cause a problem!

     Are There Safety Concerns I Should Know About When Dealing With Molding Defects or Machines?

     Focused on fixing defects, but overlooking potential safety hazards in the process? Injection molding involves high pressures, temperatures, and powerful moving parts – ignoring safety is never an option.

Safety is paramount. Risks include burns from hot plastic/molds, crushing injuries from mold clamp/ejectors, electrical hazards, and inhalation of fumes. Always follow lockout/tagout procedures and wear appropriate PPE.

Diving Deeper: Safety First, Always, When Tackling Defects

Fixing defects and getting perfect parts is incredibly important, absolutely. But it should never come at the expense of anyone’s safety. That’s a non-negotiable principle we drill into everyone at CavityMold. An injection molding machine is a seriously powerful piece of equipment, and you’ve got to treat it with the utmost respect it deserves. When product designers like Jacky visit a molding facility, I know for a fact he’s not just looking at the parts; he’s also observing the safety practices around the machines.

• ### Key Hazard Zones & Essential Precautions:
  • Sizzling High Temperatures: Molten plastic can easily be at 200°C (that’s nearly 400°F) or even much higher, depending on the material. The mold itself, the heater bands on the barrel, and the machine nozzle are all significant burn hazards.
    • Your PPE Armor: Heat-resistant gloves and a full-face shield are an absolute must when working anywhere near these hot areas or when handling hot purgings from the nozzle.
  • Immense Pressures: Injection pressures can be colossal – we’re talking thousands of psi. A ruptured hydraulic hose or a component failure under that kind of pressure can project hot material or debris with dangerous force.
  • The Mighty Clamping Mechanism: The force that holds the mold shut is enormous, often hundreds of tons. Never, ever reach into the mold area when the machine is powered up and capable of closing. Modern machines have safety gates and interlocks, but these systems must be regularly maintained and never bypassed for convenience.
  • Powerful Ejector System: Ejector pins move with considerable force to push the part out. Always keep hands and tools clear of this area during operation.
  • Hidden Electrical Systems: High voltage electricity powers these machines. Only qualified and authorized personnel should ever attempt to access electrical cabinets or perform electrical work.
  • Watch Out for Fumes/Off-gassing: Some plastics can release fumes when heated to processing temperatures. Good, effective ventilation in the molding area is essential. For certain materials, wearing appropriate respirators might also be necessary.
  • The Rise of Automation: Robots and conveyors used for part handling also introduce their own set of movement hazards that need to be respected and guarded.
• ### Our Golden Rules for a Safe Shop Floor:
  • Lockout/Tagout (LOTO) is King: Before any maintenance, mold change, or in-depth troubleshooting work begins inside the machine, it must be properly de-energized and locked out according to established procedures.
  • Training is Continuous: Everyone working with or even near the injection molding machines needs thorough and ongoing safety training. It’s not a one-time thing.
  • Good Housekeeping is Crucial: Keep the area around the machines clean and free of clutter and spills – especially oil or stray plastic pellets, which can be serious slip hazards.
    No part, no matter how critical, is worth an injury. If we’re troubleshooting a defect that requires, say, peering into the mold to see what’s happening, we do it safely. This often means with the machine fully stopped, de-energized, and physically secured. Safety isn’t just a rulebook; it’s a mindset.

    Conclusion

    Defect-free molding isn’t magic; it’s good design, meticulous process control, and quick, smart problem-solving. CavityMold is here to help you Master Molding Right, avoiding these common pitfalls.
