How Designing for PTFE: Engineering Guidelines and Best Practices?

Designing parts with PTFE¹ seems straightforward due to its amazing properties, right? But its unique nature, like softness and creep², can lead to design failures or manufacturing headaches if not handled correctly.

Successful PTFE part design requires understanding its low friction, chemical inertness³, temperature range, and dielectric strength, while actively managing its tendency to creep under load and its specific machining or molding needs.

At CavityMold, we often work with designers like Jacky who need to leverage PTFE’s benefits without falling into common traps. I remember one project where slight oversights in managing creep led to sealing issues down the line. Understanding this material deeply from the start is crucial. Let’s dive into the key guidelines for getting your PTFE designs right.

Getting the design details right for a material as unique as PTFE is critical for performance. It behaves differently than most engineering plastics or metals, and overlooking these differences can compromise the final part. We need to consider its strengths and weaknesses equally.

What Makes PTFE Unique for Design Engineers?

Tempted to treat PTFE like any other plastic in your CAD software? Its properties are exceptional, but assuming standard design rules apply can lead to unexpected problems with fit, function, or manufacturability.
PTFE stands out for its extremely low friction, broad chemical resistance, wide operating temperature range (-200°C to +260°C), excellent dielectric properties, and non-stick surface, but also its relative softness and susceptibility to creep.
!

Diving Deeper: Leveraging Strengths, Mitigating Weaknesses

Understanding PTFE’s property profile is the foundation for good design. It’s not just about knowing the numbers, but grasping their implications. Let’s break down the key characteristics Jacky and other designers need to focus on:

• Ultra-Low Coefficient of Friction: This is often why PTFE is chosen. It allows for self-lubricating bearings, seals, and non-stick surfaces. Design implication: Great for sliding parts, but might be hard to bond to other materials without surface treatment.
• Exceptional Chemical Inertness: PTFE resists almost all chemicals and solvents. Design implication: Ideal for seals, gaskets, linings, and components in corrosive environments where other materials would degrade. Compatibility is rarely an issue.
• Wide Temperature Range: It maintains useful properties from cryogenic temperatures up to 260°C (500°F). Design implication: Suitable for demanding applications with extreme temperature fluctuations. However, thermal expansion is high and must be accounted for.
• Excellent Dielectric Strength: It’s a fantastic electrical insulator. Design implication: Perfect for high-frequency insulation, cable jacketing, and connector components.
• Softness and Creep (Cold Flow): This is a major design consideration. PTFE is relatively soft and will deform permanently over time under sustained load, even at room temperature. Design implication: Tolerances need to be generous, high loads must be avoided or managed (e.g., using filled grades), and designs requiring long-term dimensional stability under pressure need careful thought.
• High Thermal Expansion: PTFE expands and contracts significantly with temperature changes, more so than most metals or other plastics. Design implication: Clearance fits and tolerance stack-ups must accommodate this movement, especially in assemblies with dissimilar materials.
  Understanding these points helps prevent specifying PTFE where its weaknesses outweigh its strengths.

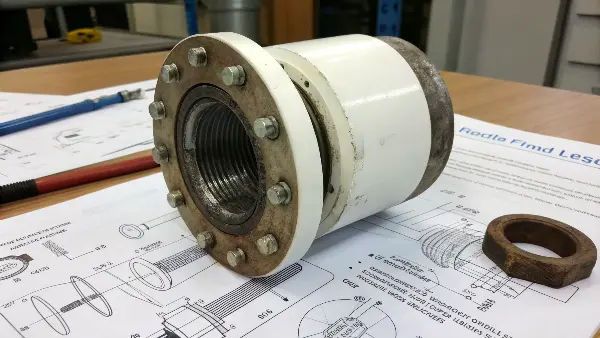

  How Does PTFE’s Tendency to Creep Affect Part Design?

  Designed a critical PTFE seal or bearing based only on initial dimensions? The part might fit perfectly at first, but PTFE’s tendency to slowly deform under pressure (creep) can cause leaks or loss of function over time.

PTFE creep significantly impacts design by causing loss of preload in bolted joints, dimensional changes in seals⁴ leading to leaks, and reduced load-bearing capacity over time, requiring generous tolerances and stress-minimizing designs⁵.

Diving Deeper: Managing Cold Flow in Designs

Creep, or cold flow, is perhaps the most critical behavior to manage when designing with unfilled PTFE. It’s the material’s natural tendency to deform permanently when subjected to a sustained mechanical stress, even well below its yield strength and at ambient temperatures. This impacts designs in several ways:

• Seals and Gaskets: Initial sealing pressure can decrease over time as the PTFE flows away from the stressed area, potentially leading to leaks. Designs should maximize sealing area and minimize localized stress. Confined designs (like O-rings in properly sized grooves) perform better than face seals under high pressure.
• Bearings and Bushings: Dimensions can change under load, affecting clearances and potentially leading to misalignment or increased friction if the creep isn’t accounted for in the initial design tolerances. Lower stress designs are preferred.
• Bolted Joints: If PTFE is used as a washer or insulator in a bolted assembly, it will creep under the bolt load, causing a loss of clamping force (preload). This requires periodic retightening or design modifications like using Belleville washers or specifying filled PTFE grades.
• Interference Fits: Fits that rely on sustained pressure might loosen over time.
  Strategies to Mitigate Creep:
  1. Minimize Stress: Design parts to distribute loads over larger areas. Avoid sharp corners or features that concentrate stress.
  2. Use Confinement: Where possible, design features that physically contain the PTFE, limiting its ability to flow outwards (e.g., O-ring grooves, contained gaskets).
  3. Consider Temperature: Creep is more pronounced at higher temperatures. Factor this into safety margins.
  4. Specify Filled Grades: Adding fillers like glass fiber, carbon, bronze, or graphite significantly improves creep resistance (and wear resistance, stiffness) at the expense of some chemical resistance or friction properties. Jacky often explores filled grades for demanding applications.
  5. Generous Tolerances: Account for potential dimensional changes in your tolerance stack-ups.
     Acknowledging and designing for creep is non-negotiable for reliable PTFE components.

     What are Best Practices for Machining PTFE Components?

     Think you can machine PTFE using standard plastic or metal settings? Its unique softness, poor heat dissipation, and tendency to deform require specific techniques to avoid poor finishes, inaccurate dimensions, or stress-induced warping.

Best practices for machining PTFE include using extremely sharp tools with specific geometries (high rake/clearance angles), high cutting speeds, low feed rates, providing ample part support, avoiding coolants generally, and stress relieving after machining.

Diving Deeper: Achieving Precision in PTFE Machining

Machining PTFE presents unique challenges compared to metals or even other plastics. Its properties demand adjustments to tooling, parameters, and handling. I’ve seen machinists struggle initially if they treat it like Delrin or Nylon. Here’s what works:

• Tooling:
  • Sharpness is Paramount: Tools must be razor sharp to shear the material cleanly rather than pushing or tearing it. HSS is often sufficient, but polished carbide offers longer life.
  • Geometry: High positive rake angles (15-30°) and relief/clearance angles (10-20°) help lift the chip away and minimize rubbing/heat generation. A large nose radius can improve finish.
• Speeds and Feeds:
  • High Cutting Speed: Generally, use the highest speed possible (e.g., 500-1000 ft/min or higher) to promote clean shearing before the material can deform excessively.
  • Low Feed Rate: Use low feed rates (e.g., 0.001-0.005 inches per revolution) to minimize cutting forces and heat buildup.
  • Shallow Depth of Cut: Helps control heat and forces.
• Coolant: Generally avoided. Coolants don’t significantly help dissipate heat from the tool tip in PTFE due to its insulating nature, and they can make swarf management messy. Air blast can sometimes help clear chips. If used, ensure compatibility and thorough cleaning.
• Part Support: PTFE is soft and flexible. Provide robust support close to the cutting area to prevent deflection and vibration, which ruins accuracy and finish. Custom fixtures are often needed.
• Stress Relieving (Annealing): Internal stresses are easily induced during machining. For tight tolerance parts, annealing (heating below the melt point, holding, and slow cooling) before final finishing cuts and/or after machining is often essential to achieve dimensional stability and prevent warping later.
• Handling and Inspection: PTFE scratches easily. Handle parts carefully. Dimensional inspection can be tricky due to flexibility; use minimal probe force.
  Following these guidelines significantly improves the chances of producing accurate, stable PTFE parts.

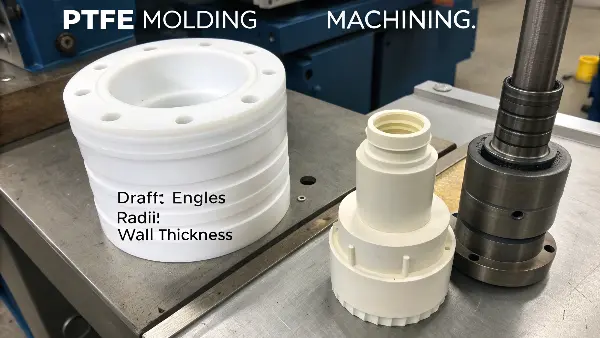

  Are There Special Considerations for PTFE Molding vs. Machining?

  Choosing between molding and machining for your PTFE part? While machining offers flexibility, molding handles complexity and volume differently, involving unique processes and design rules distinct from typical injection molding.

PTFE molding⁴ (compression molding/sintering) is best for complex shapes or high volumes, while machining excels for prototypes, simpler geometries, and tighter tolerances. Molding requires specific design rules for draft, radii, and wall thickness due to the sintering process⁵.

Diving Deeper: Choosing the Right Manufacturing Path

Unlike common thermoplastics, PTFE isn’t typically injection molded due to its extremely high melt viscosity. Instead, it’s processed using techniques similar to powder metallurgy: compression molding and sintering. This fundamentally affects design considerations when comparing it to machining from stock shapes (rod, tube, sheet).
Compression Molding & Sintering:

1. Process: Fine PTFE powder (sometimes mixed with fillers) is compressed into a "preform" shape in a mold at room temperature. This fragile preform is then carefully removed and sintered (baked) in an oven at high temperatures (around 360-380°C), fusing the particles. Finally, it’s cooled under controlled conditions (coining) to achieve final dimensions and properties.
2. Design Considerations:
   • Complexity: Can produce complex shapes difficult or impossible to machine efficiently.
   • Volume: More economical for higher production volumes due to tooling investment.
   • Tolerances: Generally looser than machining (+/- 1-2% is common) due to shrinkage during sintering.
   • Wall Thickness: Uniform wall thickness is preferred to ensure even sintering. Minimum/maximum thickness limits apply.
   • Draft Angles: Required for ejecting the preform from the mold.
   • Radii: Sharp internal corners are difficult and stress points; generous radii are needed.
   • Material Utilization: Can be very efficient with minimal waste compared to machining from bulk stock.
     Machining from Stock Shapes:
3. Process: Standard CNC turning, milling, drilling operations on pre-existing rods, tubes, or sheets.
4. Design Considerations:
   • Complexity: Best for parts that can be readily produced with subtractive methods. Undercuts, threads are possible.
   • Volume: Ideal for prototypes, low-to-medium volumes. No expensive mold tooling.
   • Tolerances: Can achieve much tighter tolerances than molding.
   • Features: Less restrictive on sharp corners (though radii are still good practice) or varying wall thickness.
   • Material Utilization: Can generate significant scrap depending on the part geometry vs. stock size.
     When to Choose Which:
     Jacky faces this choice often. Machining is the go-to for prototypes and low quantities. If volumes increase, or if the part has features very difficult to machine (e.g., intricate internal cavities), molding becomes attractive despite the looser tolerances and tooling cost. Sometimes, a hybrid approach works: mold a near-net shape and then machine critical features for tighter tolerances.

     Conclusion

     Designing effectively for PTFE means respecting its unique properties like low friction and chemical resistance, actively managing challenges like creep and thermal expansion, and adhering to specific manufacturing best practices for machining or molding.
