Designing Injection Molded Products for Maximum Recyclability?

Frustrated that your innovative product designs might end up hindering recycling efforts? Poor design choices create waste streams that are difficult or impossible to process, undermining sustainability goals.

Designing for recyclability means prioritizing mono-material construction, using compatible labels and adhesives, avoiding problematic additives, ensuring easy disassembly¹, and selecting readily recyclable base resins² like PET, HDPE, or PP.

Making products recyclable isn’t an afterthought; it starts right at the design stage. As a mold maker, I see how design decisions directly impact the end-of-life options for plastic parts. Let’s look at how we can design better from the start.

How can a company design a product to improve its recyclability?

Worried your product’s complexity makes it unrecyclable? Mixed materials, strong glues, and certain colors create headaches for recyclers, often condemning good plastic to landfill.
Improve recyclability by choosing single, widely recycled plastics³ (like PET, HDPE, PP), using compatible and easily removable labels⁴/adhesives, avoiding incompatible fillers/additives, and designing for easy disassembly.

When I talk with designers like Jacky, we often discuss how small changes can make a big difference. It’s about thinking downstream – how will this product be handled decades later? The choices made now dictate its fate. Let’s break down the key areas.

Key Design Strategies for Recyclability

Improving a product’s recyclability involves several specific design considerations aimed at making sorting and reprocessing easier and more effective.

• Material Selection is King:
  • Mono-Material Focus: Whenever possible, design the product using a single type of plastic. Mixing plastics, even compatible ones if they aren’t easily separated, complicates recycling. Using standard, widely recycled resins like PET (1), HDPE (2), and PP (5) is the best starting point. Avoid less common or harder-to-recycle plastics unless absolutely necessary.
  • Avoid Problematic Additives: Minimize the use of fillers (like talc or glass fiber in high percentages), reinforcements, or additives that significantly alter the resin’s properties or density in ways that interfere with standard recycling streams. For example, fillers can make plastics sink when they should float (or vice-versa) during separation.
• Component and Attachment Choices:
  • Easy Disassembly: If different materials must be used, design for easy separation. Can consumers easily remove a metal spring from a plastic pump? Avoid designs that permanently fuse incompatible materials.
  • Labels and Adhesives: Use labels made from the same or a compatible plastic as the main body. Select adhesives and inks that wash off easily during the cleaning process without contaminating the plastic flakes. Pressure-sensitive labels are often preferred over full-shrink sleeves made of incompatible materials.
• Color Considerations:
  • Clear or Light is Best: Natural (unpigmented) or white plastics generally have the highest value as recyclate because they can be dyed any color. Dark or opaque colors, especially black (which can be hard for optical sorters to see), limit the potential applications for the recycled material. Carbon black pigment makes NIR sorting very difficult.
    By focusing on these areas, designers can significantly increase the likelihood that their injection molded products will successfully navigate the recycling system and become valuable feedstock for new items.

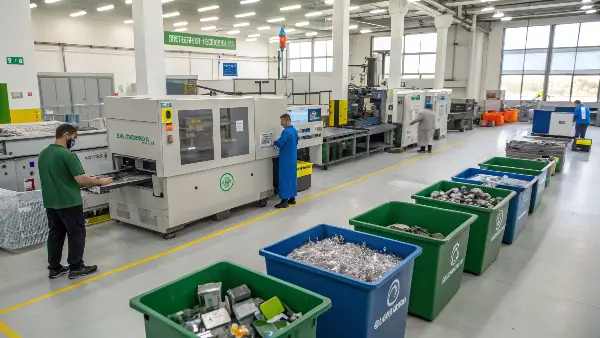

    How to make injection molding more sustainable?

    Concerned that the injection molding process itself isn’t eco-friendly? High energy use, material waste, and reliance on fossil fuels contribute to a larger environmental footprint.

Make injection molding more sustainable through energy-efficient machines, process optimization (reducing cycle times, scrap), using recycled or bio-based materials, implementing Design for Environment (DfE) principles, and minimizing packaging/transport impacts.

Sustainability in injection molding goes beyond just the recyclability of the final part. It encompasses the entire lifecycle, from material sourcing to manufacturing energy and waste reduction. At CavityMold, we constantly look for ways to optimize processes not just for cost, but for environmental impact too.

Broadening the Scope of Sustainability

Improving the sustainability of injection molding requires a holistic approach, addressing energy, materials, waste, and overall product lifecycle.

• Energy Efficiency:
  • Modern Machinery: Use all-electric or hybrid injection molding machines, which consume significantly less energy (often 30-60% less) than older hydraulic machines.
  • Process Optimization: Fine-tune molding parameters (temperature, pressure, cycle time) to minimize energy use per part without compromising quality. Proper mold maintenance also prevents inefficiencies.
• Material Choices:
  • Recycled Content: Incorporate Post-Consumer Resin (PCR) or Post-Industrial Resin (PIR) where feasible. This reduces reliance on virgin plastics derived from fossil fuels. Quality control is key when using recyclates.
  • Bio-based Plastics: Explore using plastics derived from renewable resources (like corn starch or sugarcane), considering their performance and end-of-life options (some are compostable, others recyclable).
• Waste Reduction:
  • Mold Design: Optimize mold design to minimize runner scrap (hot runner systems eliminate runners entirely). Design parts to reduce material usage (e.g., thin-walling where appropriate).
  • Scrap Management: Implement systems to regrind and reuse internal production scrap (like runners and sprues from compatible materials) directly back into the process where quality allows.
• Design for Environment (DfE):
  • This broader concept includes designing for recyclability but also considers factors like minimizing material use, reducing toxicity, extending product lifespan, and ease of repair alongside ease of recycling. It’s about minimizing overall environmental impact throughout the product’s life.
• Logistics and Packaging: Optimize packaging for molded parts to reduce material use and transportation footprint. Source materials locally when possible.
  By integrating these practices, injection molding can become a much more sustainable manufacturing process.

  What is APR design for recyclability?

  Unsure how to apply recyclability principles consistently? Lack of clear standards makes it hard for designers to know if their choices truly support efficient recycling operations.

The APR Design® Guide for Plastics Recyclability, from the Association of Plastic Recyclers (APR), provides industry-standard guidelines to help designers make choices that align with North American recycling infrastructure capabilities.

When aiming for recyclability, especially for packaging that enters the municipal waste stream, guesswork isn’t good enough. The APR guidelines are something I often point designers like Jacky towards. They represent the collective knowledge of the recycling industry itself, telling us what actually works in practice in today’s facilities.

Understanding the APR Guidelines

The Association of Plastic Recyclers (APR) is a trade organization representing the plastics recycling industry in North America. Their Design® Guide is a crucial resource for ensuring products are genuinely compatible with current recycling systems.

• Purpose: The guide translates the operational realities of recycling facilities into concrete design recommendations. It aims to ensure that packaging can successfully navigate collection, sorting, and reprocessing systems to produce high-quality recycled resins. Following the guide helps maximize the quantity and quality of recycled material.
• Key Principles: The guide covers various aspects, including:
  • Resin Choice: Recommending preferred resins (PET, HDPE, PP) and flagging problematic ones.
  • Color: Guidance on pigments, preferring clear/light colors, and issues with carbon black.
  • Labels: Recommendations for label materials, sizes, coverage, inks, and adhesives (e.g., recommending wash-away adhesives for PET bottles). Different guidance exists for PET vs HDPE vs PP streams.
  • Closures and Attachments: Guidance on caps, liners, seals, and attached components (e.g., ensuring they are made of compatible materials or easily separable).
  • Additives and Barriers: Identifying additives or layers that can contaminate recycling streams (e.g., PLA or PVC contamination in PET).
• Specific Guidance: The guide provides detailed recommendations tailored to specific plastic types (e.g., PET containers, HDPE bottles, PP containers, flexible films). It outlines what constitutes "APR Preferred," "Detrimental," or "Requires Testing."
• Benefits: Using the APR Design® Guide helps companies make informed decisions, increases the chances their products will be successfully recycled, supports the circular economy, and can enhance brand reputation among environmentally conscious consumers. It provides a common framework for the entire value chain.
  Designers using these guidelines are actively helping to improve the efficiency and output of the recycling infrastructure we rely on.

  Why is 90% of plastic not recycled?

  Shocked by the low global plastic recycling rate? Despite efforts, the vast majority ends up incinerated, in landfill, or polluting environments, causing widespread concern.

Only about 9% of plastic gets recycled globally due to economic challenges (cost vs. virgin), inadequate collection/sorting infrastructure, contamination issues, complex product designs (mixed materials), and lack of market demand for some recyclates.

It’s a sobering statistic that I discuss frequently. While we focus on designing for recyclability, we also need to acknowledge the systemic barriers preventing most plastic from being recycled. It’s not just one single problem, but a complex web of interconnected issues.

Major Barriers to Higher Plastic Recycling Rates

The often-cited figure that only around 9% of all plastic ever produced has been recycled highlights significant systemic challenges. Understanding these is crucial for finding solutions.

• Economic Viability: Collecting, sorting, cleaning, and reprocessing plastic is often more expensive than producing virgin plastic from fossil fuels, especially when oil prices are low. Market demand for recycled plastics can also fluctuate, making investment risky. Subsidies for fossil fuels further tilt the balance against recycling.
• Infrastructure and Capacity: Many regions lack sufficient infrastructure for effective collection (especially in rural areas or developing countries) and sorting (Materials Recovery Facilities – MRFs). Even where MRFs exist, they may not have the advanced technology (like sophisticated optical sorters) needed to handle complex packaging or efficiently sort all plastic types. Reprocessing capacity is also limited.
• Contamination and Material Complexity: Food residue, dirt, and non-recyclable items mixed with recyclables (wish-cycling) contaminate the stream, reducing the quality and value of the final recyclate. Products made from mixed plastics, multi-layer materials, or containing problematic additives/labels are difficult or impossible to recycle effectively through standard mechanical processes.
• Variety and Formats: The sheer variety of plastic types, additives, and colors makes sorting complex. Certain formats, like small items (caps, single-use sachets), flexible films, and black plastic, pose significant challenges for current sorting systems.
• Consumer Awareness and Behavior: Confusion about what is recyclable locally, lack of participation in collection programs, and improper sorting contribute to lower recovery rates and higher contamination.
• Chemical Recycling Limitations: While promising for handling mixed or contaminated plastics, chemical recycling technologies are still relatively new, energy-intensive, expensive, and not yet widely deployed at scale.
  Addressing this low rate requires concerted effort across the value chain: improved design, major infrastructure investment, stronger market demand for recycled content, policy incentives, and better consumer education.

  Conclusion

  Designing for recyclability is essential. By choosing materials wisely, simplifying components, and following guidelines like the APR’s, we can significantly improve the chances our injection molded products get recycled effectively.
