Are you struggling to get consistent surface finishes on your molded parts? A poor finish can ruin a product’s look and feel, leading to costly rejections and delays. This problem can frustrate even experienced project managers, affecting both brand reputation and your bottom line.
To ensure flawless surface finish, you must combine visual inspection, precise measurement, and clear acceptance criteria. Start by defining the required finish standard (e.g., SPI, VDI). Then, use tactile and non-contact measurement tools to quantify roughness (Ra). Finally, compare these results against your pre-defined standards and a physical master sample to approve or reject the parts. This systematic approach guarantees consistency and quality.
Getting the surface finish right is a critical part of mold making. It’s often the first thing a customer notices about a product. A perfect finish communicates quality, while a flawed one suggests poor craftsmanship. Over my years in this industry, I’ve learned that a structured quality control process is not just a good idea; it is absolutely essential. It prevents misunderstandings between us and our clients. It also ensures the final product meets everyone’s expectations. Let’s break down the key steps to achieving that perfect finish every single time.
How Do You Choose the Right Surface Finish For Your Mold?
Choosing a surface finish can feel overwhelming. You pick one you think is right, but the final parts look different than you imagined. This mismatch can lead to expensive tool modifications and project delays, putting your entire timeline at risk. It’s a common headache.
To choose the right surface finish, first consider your product’s function and cosmetic requirements. Reference established industry standards like SPI (Society of the Plastics Industry) for textures. For example, an SPI-A1 finish is a mirror-like polish for lenses, while a C-grade finish is suitable for non-visible internal parts. Always discuss these options with your mold maker and request a physical sample plaque to confirm your choice before mold production begins.
Selecting the correct surface finish is one of the first decisions you make, and it impacts the entire project. This choice affects not only the look and feel of the part but also its performance and the cost of the mold. For a project manager like Alex, making an informed decision here is crucial to avoid problems later. You need to balance appearance, function, and budget. Let’s dive deeper into how to make that choice.
Understanding the Key Factors
Thinking about the end product is the best starting point. Ask yourself a few simple questions. What will the part be used for? Does it need to be shiny and attractive for a consumer product? Or is it an internal component where the finish does not matter as much? Does the part need a specific texture for grip or to hide fingerprints? The answers will guide you toward the right category of finish.
Comparing Common Finish Standards
Industry standards make communication easy. They provide a common language for mold makers and clients. Two of the most widely used standards are SPI from the US and VDI from Germany.
| Standard | Description | Typical Application | Process |
|---|---|---|---|
| SPI-A1 | Grade #3, 6000 Grit Diamond Buff | High polish, optical parts, lenses | Mirror Polishing |
| SPI-B2 | Grade #15, 400 Grit Paper | Medium polish, good cosmetic appearance | Sanding |
| SPI-C3 | 400 Stone | Low polish, non-cosmetic parts | Stone Grinding |
| VDI 3400 Ref 27 | Medium-rough matte texture | Textured housings, parts needing grip | Electrical Discharge Machining (EDM) |
| VDI 3400 Ref 33 | Rough matte texture | Hides imperfections, industrial parts | Electrical Discharge Machining (EDM) |
These standards eliminate guesswork. When you specify an "SPI-B2" finish, we know exactly the level of polish required. It creates a clear target for our team and a clear expectation for you. Always ask for a sample plaque. It’s a small piece of plastic with the exact finish you specified. Holding it in your hand is the best way to know if it’s what you really want.
What Are the Go-To Inspection Methods For Surface Finish?
Your parts arrive, but some look shinier than others. You suspect inconsistencies, but pointing out the exact problem is difficult without a clear method. This subjective feedback leads to arguments with your supplier and slows down the entire approval process. You need a reliable way to check the finish.
The most common inspection methods are visual and tactile. Visually compare the part to a master sample or a standard plaque under controlled lighting. Use your fingertips to feel for inconsistencies, as touch is very sensitive to small variations in texture. For a more objective check, use these methods together to confirm the finish meets the agreed-upon standard. This combination is fast, effective, and widely accepted.
Once the mold is producing parts, we move into the inspection phase. The goal here is to quickly and reliably check if the finish on each part matches the standard you chose. This shouldn’t be a random process. A systematic approach to inspection saves time and prevents disputes. As a mold maker, I know that having a clear inspection plan is key to a smooth production run. A project manager on the client side also benefits from understanding these methods. It helps them provide clear, actionable feedback. Let’s look at the most practical ways we inspect surface finishes.
The Power of Visual and Tactile Checks
The simplest methods are often the most effective. Our eyes and hands are incredibly powerful inspection tools.
-

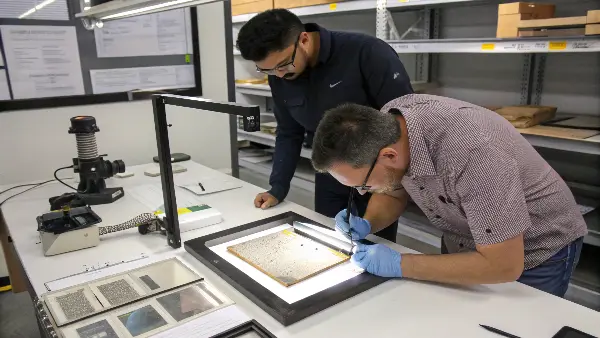

Visual Inspection: This is the first line of defense. We place the part next to the approved master sample or a standard finish plaque (like an SPI or VDI plaque). We do this under specific lighting conditions. Good lighting is critical because it reveals gloss, texture, and small defects that are invisible in poor light. We look for any differences in sheen, color, and texture uniformity.
-
Tactile (Touch) Inspection: Sometimes, a part can look right but feel wrong. Running your fingertips across the surface is a surprisingly sensitive test. You can detect subtle bumps, graininess, or smoothness variations that the eye might miss. This is especially useful for textured surfaces where a consistent feel is important for the end user’s experience.
When to Use Advanced Inspection
For most projects, visual and tactile checks are enough. However, some applications demand higher precision.
-
Gloss Meters: For high-gloss finishes like SPI-A1, a subjective visual check might not be enough. A gloss meter provides a number, measuring the amount of light reflected at a specific angle. This gives a quantitative value that we can use to ensure every part has the exact same level of shininess.
-
Microscopy: When we need to investigate very small defects like pinholes or micro-scratches, we use a microscope. This allows us to see the surface in great detail, understand the root cause of the defect, and verify that our polishing or texturing process was done correctly. These methods ensure nothing is left to chance.
How Do You Accurately Measure Surface Roughness?
You need to verify a specific surface roughness (Ra) value, but visual checks are not precise enough. The part’s function depends on a specific texture for friction or fluid flow, and you can’t afford to just guess. You need hard data to confirm the mold is correct.
To accurately measure surface roughness, use a profilometer or a 3D non-contact scanner. A profilometer drags a fine stylus across the surface to create a 2D profile and calculate the Ra value (average roughness). A 3D optical scanner measures a larger area without touching the part, providing a more comprehensive surface map. Both methods give you quantitative data to prove the finish meets engineering specifications.
While visual inspection is great for cosmetic checks, some projects need numbers. Engineering drawings often specify a surface roughness value, like "Ra 0.8 µm." This is common for parts where the surface texture affects function, like seals, bearings, or fluid channels. In these cases, we can’t just say, "it looks about right." We need to measure it precisely. This move from subjective to objective data is where professional quality control really shines. Providing this data gives peace of mind to project managers who are accountable for the technical performance of their products.
Contact vs. Non-Contact Measurement
There are two main families of tools for measuring surface roughness. Each has its place.
-

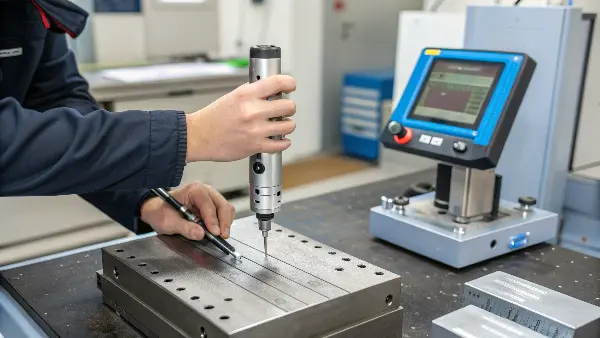

Contact Measurement (Profilometers): This is the traditional method. A device called a profilometer, or surface roughness tester, uses a very fine diamond stylus. We drag this stylus across the part’s surface over a set distance. The instrument records all the microscopic peaks and valleys the stylus travels over. From this data, it calculates several parameters, most commonly the Ra value. Ra is the arithmetic average of the roughness profile. It gives a great overall sense of the texture.
-
Non-Contact Measurement (3D Scanners): This is a more modern approach. An optical or laser scanner captures the surface topography without touching it. It projects a light pattern onto the surface and analyzes how that pattern deforms. This method is fast and captures data over a whole area, not just a single line. It’s great for complex shapes or delicate surfaces where a stylus could cause a scratch. The result is a detailed 3D map of the surface.
Understanding Roughness Parameters
The Ra value is the most common, but it doesn’t tell the whole story. Two surfaces can have the same Ra value but feel very different. That’s why we sometimes look at other parameters.
| Parameter | What It Measures | Why It’s Useful |
|---|---|---|
| Ra | Arithmetic average of the roughness profile | The most common, general-purpose indicator of roughness. |
| Rz | Average distance between the highest peak and lowest valley in five sampling lengths | Good for identifying outlier defects like deep scratches or burrs. |
| Rq | Root Mean Square (RMS) average of the roughness profile | More sensitive to large peaks and valleys than Ra. |
For most mold projects, specifying an Ra value is sufficient. But for highly critical applications, discussing Rz or other parameters with your mold maker can help you control the surface texture with much greater precision.
What Common Surface Finish Defects Should You Watch Out For?
You receive a batch of parts and notice small, unacceptable flaws. Defects like flow lines, sink marks, or burn marks have appeared, making the parts unusable. Now you have to figure out what went wrong and how to fix it, causing stress and project delays.
Common defects include flow lines, sink marks, and weld lines. Flow lines are patterns on the surface showing the path of the plastic flow. Sink marks are small depressions over thick sections. Weld lines appear where two plastic flows meet. These are often caused by issues with injection speed, pressure, or mold temperature. Identifying them is the first step to solving the root cause.
Even with the best mold, problems can happen during the injection molding process. Changes in material, temperature, or pressure can all lead to surface defects. Being able to spot these issues and understand what causes them is crucial for troubleshooting. When I work with clients, I find it helpful when they can identify and name the specific defects they see. It helps my team zero in on the solution much faster. A project manager who knows these defects can have a more productive conversation with their manufacturing partner.
A Guide to Common Defects and Their Causes
Recognizing a defect is half the battle. Here are some of the most frequent offenders.
-
Flow Lines: These look like wavy patterns or rings, often near the injection gate. They are a visual record of the molten plastic solidifying as it flows through the mold.
- Cause: Usually caused by the injection speed being too low or the molten plastic being too cool. The plastic starts to harden before the mold is completely full.
-
Sink Marks: These are small craters or depressions on the surface. They typically appear on thicker sections of a part.
- Cause: The plastic shrinks as it cools. If a section is too thick, the inside cools slower than the surface. This pulls the surface inward, creating a sink. Insufficient packing pressure is also a common cause.
-
Weld Lines: This is a fine line that appears where two or more fronts of molten plastic meet inside the mold cavity.
- Cause: The fronts are slightly cooled when they meet, so they don’t fuse together perfectly. While sometimes unavoidable, a well-designed mold and optimized process can make them nearly invisible.
Addressing Defects Systematically
When we see these defects, we don’t just guess at a solution. We use a systematic process to fix the problem.
| Defect | Potential Mold Fix | Potential Process Fix |
|---|---|---|
| Flow Lines | Relocate the gate; polish the mold surface more. | Increase injection speed; increase melt or mold temperature. |
| Sink Marks | Reduce wall thickness (core out); increase gate size. | Increase holding pressure and time; decrease melt temperature. |
| Weld Lines | Change gate location; add vents to release trapped air. | Increase melt temperature; increase injection speed. |
By working through the potential causes—first with process parameters, then with mold modifications if needed—we can efficiently eliminate defects. This ensures the parts you receive are free from these common, frustrating flaws.
How Do You Set Clear Acceptance Criteria for Surface Finishes?
You and your supplier disagree on whether a finish is "good enough." Without clear, objective standards, approval becomes a matter of opinion. This leads to wasted time, strained relationships, and inconsistent product quality. You need a better way to define "acceptable."
Set clear acceptance criteria by creating a "boundary book" or "limit samples." This includes a perfect master sample, a sample showing the worst acceptable finish, and samples showing unacceptable defects. All parties must agree on these physical examples before mass production starts. This replaces subjective arguments with a clear, physical reference for "pass" or "fail," ensuring everyone is aligned.
This is where everything comes together. You’ve chosen a finish, know how to inspect it, and can measure it. But the final question is always: "Is this part good enough to ship?" To avoid arguments, the definition of "good enough" must be agreed upon before production starts. This is what we call setting acceptance criteria. In my experience, this is the single most important step for a smooth and successful project. It protects both the client and the manufacturer from costly misunderstandings. For a project manager, having this locked down is like having a project insurance policy.
The Gold Standard: The Master Sample
The first and most important criterion is the master sample. This is a part produced from the final mold with the final material, under ideal process conditions.
- The Perfect Part: This sample represents the target. Once you approve it, it becomes the "gold standard." We keep one, and you keep one. For every production run, we will compare the parts against this master sample. It is the visual and tactile benchmark for what a perfect part should be.
Defining the Edges with Limit Samples
Perfection is the goal, but in mass production, slight variations are inevitable. The key is to define how much variation is acceptable. This is where limit samples come in.
- The Boundary Book: We work with you to create a small collection of physical samples. This "boundary book" is incredibly powerful. It should include:
- The Master Sample: The ideal part.
- The "Worst Case Acceptable" Sample: A part that is on the very edge of being acceptable. It might have a slightly less uniform texture or a tiny blemish in a non-critical area. If a part is better than this sample, it passes.
- The "First Case Unacceptable" Sample: A part that is clearly a failure. It might show an obvious sink mark, a visible weld line, or another defect you’ve defined as a deal-breaker.
This turns a subjective discussion into an objective comparison. An inspector doesn’t have to use their opinion. They simply hold the production part next to the samples in the boundary book.
| Sample Type | Role | Decision Rule |
|---|---|---|
| Master Sample | Represents the target quality. | The goal for all parts. |
| Worst Acceptable Sample | Defines the lower limit of acceptable quality. | If the part is as good as or better than this, PASS. |
| First Unacceptable Sample | Defines the upper limit of unacceptable quality. | If the part is as bad as or worse than this, FAIL. |
Agreeing on these physical samples before you give the green light for production is the best way to ensure there are no surprises when you receive your final shipment.
Conclusion
Controlling surface finish quality doesn’t have to be a mystery. By choosing the right finish, using consistent inspection methods, and setting clear acceptance criteria with physical samples, you can guarantee great results. This structured approach builds trust and ensures your final product looks and feels exactly as intended.
