Struggling to specify the perfect surface finish for your plastic parts? Choosing the wrong texture can lead to aesthetic failures, functional problems, and expensive mold rework. Getting it right is crucial for your product’s success, but navigating the different standards can feel overwhelming and lead to costly project delays.
To choose the right injection mold surface finish, you need to balance four key factors: aesthetics, function, material, and cost. This involves understanding and comparing standards like SPI for gloss levels, VDI 3400 for EDM textures, and Mold-Tech for complex patterns. The best approach is to clearly define your requirements and collaborate closely with your mold manufacturer to select the standard that precisely matches your part’s application and budget.
Getting the surface finish right from the start is one of the most critical steps in product development. It’s the first thing your customer will see and touch, and it can make or break their perception of quality. But it’s about more than just looks; the finish affects everything from part ejection to wear resistance. Over the years, I’ve seen how a small misunderstanding about a finish can cause big problems. Let’s dive deep into these standards so you can specify your next project’s finish with total confidence and avoid those common pitfalls.
What Exactly is the SPI Standard and How Does it Work?
Have you ever seen "SPI-A2 finish" on a technical drawing and felt unsure of what it really means for your final part? Misinterpreting this simple code could result in getting a dull, matte part when you expected a mirror-like shine. That’s a costly and time-consuming mistake to fix once the steel is cut.
The SPI (Society of the Plastics Industry) standard is a US-based system that classifies mold finishes into four main grades: A, B, C, and D. These grades are defined by the polishing process used on the mold. Grade A is a mirror-like diamond buff finish, Grade B is a semi-gloss paper finish, Grade C is a matte stone finish, and Grade D is a textured blast finish. Each has sub-levels for greater precision.
The SPI standard is incredibly useful because it creates a common language between designers, engineers, and mold makers. When you specify an SPI finish, you’re not just describing a look; you’re defining the exact manufacturing process needed to achieve it. This removes ambiguity and ensures everyone is on the same page. I always recommend using it as a starting point for any project where gloss level is the primary concern.
Let’s break down what each SPI category means in practical terms.
The Four Main SPI Categories
Each category is defined by the material used to polish the mold steel, which in turn creates a distinct finish on the final plastic part.
- SPI Grade A: High Gloss Finishes
This is the highest quality and most expensive finish, achieved by polishing the mold with diamond powder paste. It produces a smooth, shiny, mirror-like surface on the part. Think of high-end cosmetic packaging or optical lenses. - SPI Grade B: Semi-Gloss Finishes
This finish is achieved by polishing the mold with fine-grit sandpaper. It provides a smooth surface with low reflectivity and is great for hiding minor imperfections. It’s a popular choice for consumer electronics housings where you want a quality feel without fingerprints showing easily. - SPI Grade C: Matte Finishes
This grade is produced using fine stone polishing. The resulting part has a matte, non-reflective finish. It’s often used for internal parts or components where appearance is not a primary concern, or to create a subtle, uniform texture. - SPI Grade D: Textured Finishes
Unlike the others, this finish is created by blasting the mold surface with abrasive media like glass beads or aluminum oxide. It’s used to create rough, non-slip surfaces, hide sink marks and other molding defects, or achieve a specific rugged aesthetic.
Here is a table to help you visualize the different grades:
| SPI Grade | Polishing Method | Resulting Part Finish | Typical Ra (µm) | Common Applications |
|---|---|---|---|---|
| A-1 | Grade #3 Diamond Buff | Mirror-like, flawless gloss | 0.005 – 0.012 | Lenses, mirrors, high-end visors |
| A-2 | Grade #6 Diamond Buff | High gloss with very fine lines | 0.012 – 0.025 | High-end cosmetic packaging, display screens |
| A-3 | Grade #15 Diamond Buff | Medium gloss | 0.05 – 0.10 | General high-quality cosmetic parts |
| B-1 | 600 Grit Paper | Fine semi-gloss, no visible scratches | 0.20 – 0.30 | Consumer electronics, appliance housings |
| B-2 | 400 Grit Paper | Medium semi-gloss | 0.40 – 0.55 | Parts requiring good appearance without high gloss |
| B-3 | 320 Grit Paper | Coarse semi-gloss | 0.90 – 1.20 | Industrial components, utility parts |
| C-1 | 600 Grit Stone | Fine matte | 0.80 – 1.20 | Industrial parts, some automotive interiors |
| C-2 | 400 Grit Stone | Medium matte | 1.80 – 2.20 | Non-cosmetic parts, internal components |
| C-3 | 320 Grit Stone | Coarse matte | 3.00 – 3.50 | Parts where finish is not critical |
| D-1 | #11 Glass Bead Dry Blast | Fine satin texture | 1.80 – 2.20 | Hiding flow lines, uniform texture |
| D-2 | #240 Oxide Dry Blast | Dull texture | 3.80 – 4.50 | Parts needing a non-slip grip |
| D-3 | #24 Oxide Dry Blast | Coarse, rough texture | 10 – 12 | Ruggedized enclosures, parts hiding heavy defects |
How Do SPI and VDI Surface Finishes Differ?
You have your part designed, but now you need to pick a texture. You see options for both SPI and VDI finishes and wonder which one is right. Choosing incorrectly can mean getting a simple matte finish when you really needed a specific EDM texture, forcing a compromise on your design intent.

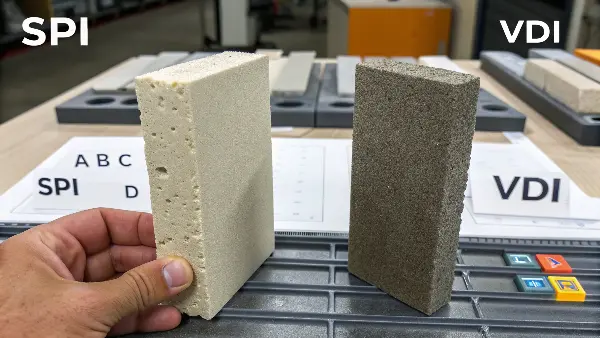

The main difference is their origin and application. SPI is a US standard focused on finishes achieved through manual polishing, graded by gloss level (A, B, C) and simple blasting (D). VDI 3400 is a German standard specifically for textures created by Electrical Discharge Machining (EDM). While some finishes overlap, VDI provides a more controlled and repeatable standard for textured surfaces, with 45 distinct grades.
I often get asked this question, especially by clients like Alex who work on projects for global markets. Think of it this way: SPI is your go-to for specifying smoothness and shine, while VDI is the expert guide for getting a precise, engineered texture. For a project requiring a specific tactile feel or a consistent matte look across large surfaces, VDI often gives us better control.
Let’s explore the key distinctions to help you decide which standard to use and when.
Method of Creation
The most fundamental difference lies in how the mold finish is produced.
- SPI: Primarily relies on manual polishing. Highly skilled technicians use diamond paste, sandpaper, or stone to physically smooth the mold surface. This process is very labor-intensive, and its quality can depend on the technician’s skill. The "D" grade is an exception, using bead or oxide blasting.
- VDI: Is exclusively based on Electrical Discharge Machining (EDM). In this automated process, an electrode discharges sparks that erode the mold steel, creating a negative of the desired texture. Because it’s a controlled machine process, VDI finishes are highly repeatable and consistent, even across different molds or manufacturing facilities. I remember a project with a large automotive dashboard; using VDI was the only way to ensure every section, molded in different tools, had the exact same grain.
The Grading System
The standards also organize their grades very differently.
- SPI: Uses lettered categories (A, B, C, D) that describe the type of finish (glossy, matte, etc.). It’s a descriptive system. You choose Grade A for gloss, Grade B for semi-gloss, and so on.
- VDI: Uses a numerical system from VDI 0 to VDI 45. The grades are sequential, moving from extremely fine and glossy (low numbers) to very coarse and rough (high numbers). This makes it easy to specify a texture’s roughness level. For example, VDI 27 is a standard medium texture, while VDI 33 is noticeably coarser.
Here’s a simplified comparison:
| Feature | SPI Standard | VDI 3400 Standard |
|---|---|---|
| Origin | USA (Society of the Plastics Industry) | Germany (Verein Deutscher Ingenieure) |
| Primary Method | Manual Polishing (Grades A, B, C), Blasting (D) | Electrical Discharge Machining (EDM) |
| Focus | Gloss level and smoothness | Controlled, repeatable textures |
| Grading | 4 categories (A, B, C, D) with sub-levels | 45 numerical grades (VDI 0 to VDI 45) |
| Best For | Specifying shine (e.g., lens, cosmetic case) | Specifying consistent grain/texture (e.g., car interior) |
| Repeatability | Can vary with technician skill | Highly consistent and repeatable |
When Should You Choose Mold-Tech Over VDI?
Your design calls for a unique texture, like leather, wood grain, or a custom geometric pattern. You look at VDI standards, but they are all uniform, grainy textures. Specifying a VDI finish here would completely miss the aesthetic goal, leading to a part that looks nothing like your design rendering.

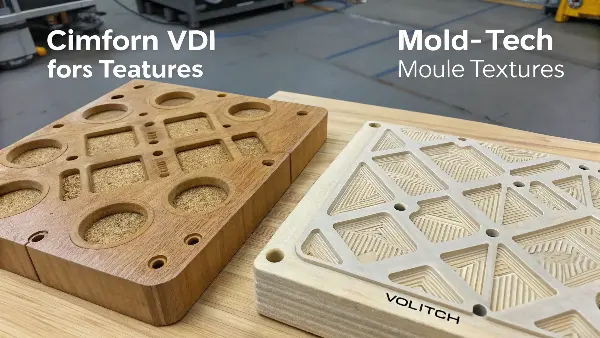

Choose Mold-Tech when you need a complex, multi-layered, or custom-designed texture that goes beyond the uniform finishes offered by VDI. While VDI is excellent for standard EDM grain textures, Mold-Tech specializes in creating realistic natural patterns (leather, wood), geometric designs, and custom brand logos. It’s an artistic, chemical etching process, whereas VDI is a standardized machine process.
I think of Mold-Tech as the artist of the surface finish world. VDI gives you excellent, reliable textures, but Mold-Tech gives you character and identity. When a client comes to me with a product that needs to feel premium and visually distinct—like a luxury car interior or a designer electronic device—my mind immediately goes to Mold-Tech. It’s the standard for turning a simple plastic part into something that feels special and looks authentic.
Let’s get into the details of where Mold-Tech shines and how it differs from VDI.
The Art of Chemical Etching
The biggest difference is the process. VDI relies on the precise, mechanical nature of EDM. Mold-Tech, on the other hand, is a multi-step process that is part science, part art.
- Design Transfer: The desired pattern is printed onto a special film, or "mask," which is applied to the mold surface.
- Etching: The mold is submerged in an acid bath. The acid eats away at the exposed steel surfaces not protected by the mask, etching the pattern into the mold.
- Layering: For complex textures like leather, this process is repeated multiple times with different masks and etching depths to create highlights, lowlights, and the random variations found in natural materials.
This process allows for an almost infinite range of designs that EDM simply cannot replicate.
Customization vs. Standardization
This is the core of the decision-making process when choosing between the two.
- VDI 3400: Is a standardized system. VDI 27 from CavityMold should be identical to VDI 27 from any other qualified shop in the world. This is perfect for functional textures or when brand consistency across different suppliers is key. It’s predictable, reliable, and universally understood.
- Mold-Tech: Is all about customization. While they have a large catalog of standard textures (e.g., MT-11010 for a light leather grain), their real strength is creating something unique for your project. You can design a pattern from scratch, and they can translate it onto the mold steel. I worked on a project for a gaming controller where we etched the company’s logo in a subtle, repeating pattern for improved grip. That’s something only Mold-Tech could do.
Here’s a table to show when to use each:
| Scenario | Best Choice | Why? |
|---|---|---|
| You need a consistent, light matte texture for an electronics housing. | VDI | VDI offers repeatable, standard textures (like VDI 27 or VDI 30) perfect for this application. |
| Your design calls for a realistic wood grain finish on a dashboard panel. | Mold-Tech | Only a layered chemical etching process can replicate the depth and randomness of a natural pattern. |
| You need to hide sink marks on a large, flat polypropylene part. | VDI | A simple, coarse VDI finish (like VDI 33-36) is a cost-effective and functional solution. |
| You want to create a unique geometric pattern for a designer speaker grille. | Mold-Tech | Mold-Tech can etch any custom 2D pattern, offering complete design freedom. |
| Your project involves multiple suppliers, and you need perfect texture matching. | VDI | The VDI standard ensures that the texture will be consistent regardless of where the mold is made. |
| The part needs to feel like soft-touch leather. | Mold-Tech | Mold-Tech’s proprietary processes can create complex patterns that mimic natural materials with high fidelity. |
Ultimately, the choice comes down to your design intent. If you need a reliable, standard texture, VDI is a fantastic, cost-effective choice. If your product’s story is told through its unique surface, Mold-Tech is the only way to go.
Conclusion
Choosing the right surface finish doesn’t have to be complicated. By understanding the core strengths of SPI, VDI, and Mold-Tech, you can make informed decisions. Remember to align your choice with your product’s aesthetic, functional needs, and budget, and always communicate clearly with your manufacturing partner.
