Have you ever designed a part with a beautiful textured finish, only to see it come out of the mold with ugly drag marks? This frustrating issue can lead to high scrap rates and project delays. The solution lies in a precise understanding of draft angle optimization for textured surfaces.

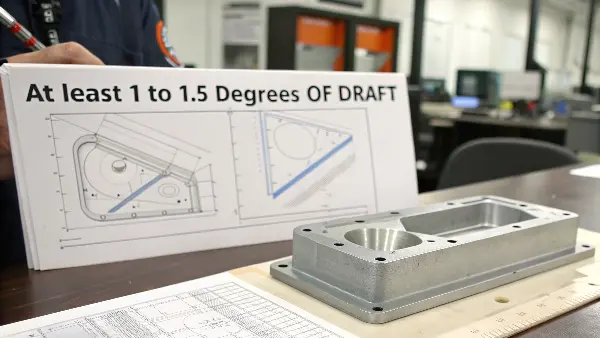

To prevent scratches on textured surfaces, you must increase the draft angle in direct proportion to the texture’s depth. As a rule of thumb, add at least 1 to 1.5 degrees of draft for every 0.001 inch (0.025 mm) of texture depth. This extra clearance allows the part to release cleanly from the mold wall without the texture grabbing and causing drag marks, ensuring a perfect finish.
Over my years in mold making at CavityMold, I’ve seen this exact problem derail timelines for clients who were so close to the finish line. A perfect design on paper can fail in practice if the physics of mold release aren’t respected. It’s a common but entirely preventable issue. It all comes down to understanding the relationship between the texture you want and the draft you need. Let’s break it down so you can nail it every time.
What is the relationship between texture depth and the required draft angle?
You know you need more draft for textures, but guessing the exact amount feels like a gamble. A wrong guess can lead to expensive mold rework or a terrible part finish, putting your project behind schedule. Understanding the direct relationship between texture depth and draft angle removes this guesswork entirely.
The relationship is direct and crucial: the deeper the texture, the more draft you need. For every 0.001 inch (0.025 mm) of texture depth, you should add an additional 1 to 1.5 degrees of draft to your part’s base angle. This simple rule ensures the textured surface can clear the mold wall during ejection without dragging. Ignoring this is the number one cause of scuffs on textured parts.
When I first started, a project manager, much like Alex today, came to us with a part for a handheld device. The design had a beautiful, deep leather-like texture. They had specified a standard 1-degree draft, which would be fine for a smooth surface. However, the texture was 0.003 inches deep. I knew immediately that it would fail. To get the part to release without scratches, it needed a much steeper angle. We had to explain that the texture itself creates thousands of tiny undercuts that grip the mold steel. The draft angle needs to be sufficient to overcome this grip.
The Basic Formula for Textured Draft
The rule we follow is simple and effective. It’s a foundational principle in our design review process.
Total Draft = Base Draft + (Texture Depth in thousandths of an inch x 1.5 degrees)
For example, if your part requires a base draft of 1 degree for a smooth finish, and you add a texture with a depth of 0.002 inches (0.05 mm), your calculation would be:
1° (Base) + (2 x 1.5°) = 4° Total Draft
This formula provides a safe starting point for most common textures and materials.
Why Deeper Textures Grab More
Imagine a smooth wall. The part only needs to overcome friction to slide past it. Now, imagine that wall has tiny hills and valleys. As the part ejects, the plastic in those valleys gets caught on the steel hills of the mold. The draft angle creates a ramp, allowing the part to move away from the mold wall as it’s pushed out. A deeper texture means taller hills, so you need a steeper ramp (more draft) to clear them without scraping. The force required for ejection increases dramatically with texture depth if the draft is insufficient, which can lead to part warpage or even ejector pin marks, in addition to scratches.
A Practical Chart for Quick Reference
To make things easier, I often share this simple reference table with project managers. It helps visualize the requirements and build them into the initial design, saving time and avoiding rework.
| Texture Depth (inch) | Texture Depth (mm) | Additional Draft Needed | Example Total Draft (1° Base) |
|---|---|---|---|
| 0.001" | 0.025 mm | 1.5° | 2.5° |
| 0.002" | 0.050 mm | 3.0° | 4.0° |
| 0.003" | 0.075 mm | 4.5° | 5.5° |
| 0.004" | 0.100 mm | 6.0° | 7.0° |
| 0.005" | 0.125 mm | 7.5° | 8.5° |
This table is a great starting point for any discussion with your design team. It turns an abstract concept into concrete numbers they can use in their CAD software.
How do different texturing methods affect draft angle requirements?

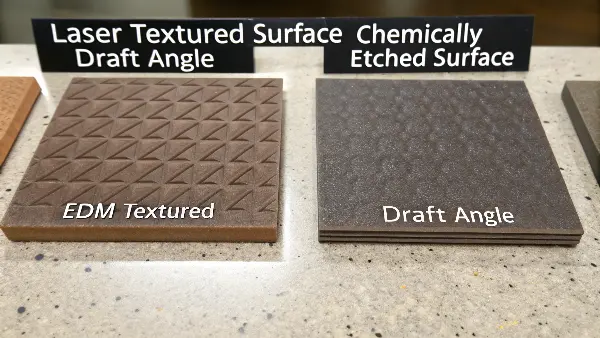

You’ve chosen a specific texture finish, maybe from a standard like VDI or Mold-Tech. But you worry that the method used to create that texture—be it acid etching, EDM, or laser—might change your design rules. This uncertainty can make you second-guess your draft angle calculations.
Yes, the texturing method significantly impacts the required draft angle. Laser texturing offers precise control, often allowing for slightly less draft. Chemical etching creates a more organic, random pattern that might have localized undercuts, requiring more draft. EDM is generally used for rougher finishes and demands the most generous draft angles due to its more aggressive surface profile.
I remember a project for a client in Australia that really highlighted this. They wanted a VDI 30 finish. We could achieve this with either chemical etching or EDM. The part was an internal component, so aesthetics were less critical than cost. We initially quoted for EDM, which is often more cost-effective for simpler geometries. However, their design had only 3 degrees of draft on the textured walls. That was enough for a fine chemical etch, but not for an EDM finish of that depth. The EDM process creates a rougher, more jagged surface that requires more clearance. We had to go back to them and explain the options: either increase the draft to 5 degrees to accommodate EDM or switch to chemical etching, which would work with their existing design but slightly increase the mold cost. They appreciated the clear explanation and opted to increase the draft, saving them money in the long run.
Chemical Etching: The Artistic Approach
Chemical etching is a multi-step process where acid selectively eats away at the mold surface, which is protected by a patterned mask. It’s excellent for creating complex, natural-looking patterns like leather or wood grain.
- Surface Profile: It creates a flowing, organic texture. However, the process can be less uniform than others, sometimes creating microscopic undercuts.
- Draft Impact: Because of this randomness, it’s wise to stick closely to the "1.5 degrees per 0.001 inch" rule or even add a small safety margin. The non-uniform nature means some areas might "grip" more than others.
Electrical Discharge Machining (EDM): The Powerhouse
EDM uses electrical sparks to erode the steel, creating the texture. It’s often used for standard geometric patterns and matte finishes, like the VDI (Verein Deutscher Ingenieure) standards.
- Surface Profile: EDM creates a series of small craters, resulting in a sharp, gritty surface. From a microscopic view, it’s very jagged.
- Draft Impact: This jaggedness acts like sandpaper, creating a huge amount of friction during ejection. For EDM textures, I always recommend being generous with the draft. It’s better to have 6 degrees when you only needed 5, than to have 4 degrees and a stuck part. For deeper VDI finishes (e.g., VDI 30 and rougher), you may need closer to 2 degrees of draft per 0.001" of depth.
5-Axis Laser Texturing: The Precision Tool
This is the most modern and versatile method. A high-powered laser precisely ablates the mold surface, allowing for incredible detail and perfect replication of digital patterns.
- Surface Profile: The laser can create very clean, sharp, and consistent patterns with controlled wall angles on the texture itself.
- Draft Impact: Because of this control, laser texturing can sometimes work with slightly less draft than the other methods. We can ensure the texture itself has no undercuts. However, the standard physics of release still apply. It’s safer, but you can’t defy gravity. You still need adequate draft, but you can be more confident at the lower end of the recommended range (e.g., 1 degree per 0.001").
How can you validate your draft angle design before cutting steel?
You’ve done the calculations and followed the best practices, but a nagging doubt remains. Committing to machining an expensive steel mold is a huge step. A mistake found at this stage means costly rework and significant delays, putting your entire project at risk.
The most effective way to validate your draft angle design before manufacturing the mold is by using Mold Flow Analysis (MFA) software. This simulation tool can predict ejection forces and identify potential drag or scuffing issues on textured surfaces. It allows you to digitally test and refine your draft angles, providing strong confidence that your design will succeed in the real world before a single chip of steel is cut.
A few years back, we were working on a large housing for a medical device. The project manager, Alex, had specified a very subtle, fine texture over a large, deep-draw surface. His team had calculated a 2-degree draft, which seemed borderline. The texture was shallow, but the surface area was massive, meaning the cumulative friction would be very high. Instead of just starting the mold build, I recommended we run a full Mold Flow Analysis. The simulation cost a fraction of potential rework. The analysis came back clear: the ejection force was predicted to be dangerously high in the corners, precisely where the texture wrapped around a slight curve. The simulation showed us that adding just another 0.5 degrees of draft in those specific areas would cut the ejection force by 40%. Alex was thrilled. We made the small change in the CAD file, and the first parts came out of the mold perfectly. That small investment in simulation saved them weeks of potential delays and thousands in rework costs.
What Mold Flow Analysis Reveals
Mold Flow Analysis isn’t just a pass/fail test. It gives you detailed insights that you can’t get from a simple CAD draft check.
- Ejection Force Prediction: It calculates the total force required to push the part out of the mold. If this force is too high, it flags a high risk of scratching, warping, or even breaking the part.
- Shear Stress Analysis: It highlights areas on the part’s surface that will experience high stress during ejection. For textured surfaces, these high-stress zones are exactly where you’ll see drag marks and scuffing.
- Visualization of Problem Areas: The software provides color-coded maps of the part, making it easy to see exactly which features are causing problems. This allows you to make targeted, minimal changes to the design instead of just adding draft everywhere.
The Draft Analysis Tool in CAD
Before you even get to Mold Flow, there’s a simpler tool available in most professional CAD packages (like SolidWorks, CATIA, or Siemens NX).
- Functionality: The "Draft Analysis" tool visually checks your part model to ensure all surfaces have the minimum required draft. You input a pull direction and a draft angle, and it color-codes the surfaces: green for positive draft, yellow for insufficient draft, and red for undercut conditions.
- Limitations: This tool is essential but has a major blind spot: it treats all surfaces as smooth. It cannot account for the added friction and grip from a texture. It will tell you if you have 3 degrees of draft, but it won’t tell you if those 3 degrees are enough for your chosen VDI 27 finish. It’s a critical first step, but not the final validation for textured parts.
The Role of Prototyping
While simulation is powerful, sometimes a physical test is valuable, especially for novel materials or textures.
- 3D Printed Molds: For some materials, we can create short-run injection molds using advanced 3D printing techniques. This allows us to shoot a small number of actual parts to test the ejection behavior.
- Machined Inserts: A more robust method is to machine a small, representative section of the texture into a test insert. This allows you to confirm the release characteristics of a specific finish on a specific material before committing to the full cavity and core. This provides invaluable real-world data to complement your simulation results.
Conclusion
Optimizing draft for textured surfaces isn’t complex, but it requires careful attention. By following the rule of adding 1.5 degrees per 0.001" of texture depth, considering your texturing method, and validating with analysis tools, you can ensure your parts release cleanly and look perfect every time.
