Are you seeing flaws in your final molded parts, like poor surface texture or ejection marks? The root cause might not be the material or the molding machine. It could be hidden deep within the mold’s manufacturing process, specifically in the CNC tool path strategy.

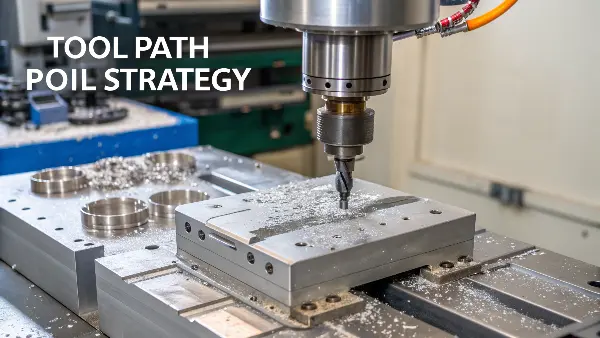

A tool path strategy is the specific route a cutting tool follows during the CNC machining of a mold. A well-planned strategy is critical because it directly controls the final surface quality and dimensional accuracy, including essential features like draft angles. The right path ensures smooth, consistent material removal, leading to a high-precision mold that produces flawless parts consistently.
When I first started in this industry, I thought CNC machining was just about telling a machine where to cut. I quickly learned that the "how" is just as important as the "where." The strategy behind the tool’s movement—its path—is what separates an average mold from a world-class one. It’s a complex dance of physics and geometry that we have to choreograph perfectly. If you want to understand what makes a mold reliable and high-performing, you need to look at its tool path strategy.
Let’s break down exactly how this works and why it’s so important for your projects.
What is a Tool Path Strategy and Why is it so Crucial for Mold Making?
Ever wondered why two seemingly identical molds can produce parts of vastly different quality? The secret often lies in the digital blueprint that guides the cutting tool. An unplanned or poorly optimized tool path can lead to defects that plague your production run from the very start.
A tool path strategy is the programmed sequence of movements a CNC cutting tool makes to shape the mold block. It’s crucial because it dictates everything from machining time to the final mold quality. A good strategy minimizes stress on the tool and the workpiece, ensuring a smooth surface finish and precise geometric features, which are fundamental for a high-performance mold.
In my experience, thinking about tool paths is like planning a road trip. You don’t just pick a destination; you choose the best route. Will you take the highway for speed, or a scenic route for a better result? In mold making, this choice has serious consequences. The wrong path can lead to tool chatter, leaving marks on the mold surface. It can also cause the tool to deflect, or bend slightly, resulting in inaccurate dimensions. This is especially critical for features like draft angles, where even a fraction of a degree matters for part ejection.
Over the years, I’ve seen projects delayed because of mold rework, all stemming from a rushed tool path plan. That’s why at CavityMold, we spend a significant amount of time in the CAM (Computer-Aided Manufacturing) phase, simulating and refining every path. It’s an upfront investment that pays off massively in the long run.
Understanding the Core Components
The strategy isn’t just a single line; it’s a combination of several factors that our engineers carefully consider.
- Cutting Type: Are we roughing (removing large amounts of material quickly) or finishing (taking light passes for a smooth surface)?
- Step-over: How much does the tool move over on each pass? A small step-over creates a smoother surface but takes more time.
- Feed and Speed: How fast does the tool move (feed rate) and how fast does it spin (spindle speed)? This depends on the material, tool, and desired finish.
Why This Matters for Project Managers
As a project manager, you don’t need to program the tool paths yourself, but understanding their importance helps you ask the right questions. When you’re evaluating a mold supplier, ask them about their CAM process and how they optimize tool paths for quality. A confident and detailed answer is a good sign you’re dealing with experts. It shows they’re not just cutting metal; they’re engineering a solution for precision and reliability.
| Strategy Component | Impact on Mold Quality | What to Consider |
|---|---|---|
| Roughing Path | Sets the foundation for final dimensions. | Maximize material removal without stressing the mold. |
| Finishing Path | Directly creates the final surface texture and accuracy. | Minimize tool marks and ensure geometric integrity. |
| Step-over/down | Determines the smoothness of the surface. | Balance between machining time and surface finish. |
| Feed and Speed | Affects tool life, surface finish, and heat generation. | Material hardness, tool type, and machine capability. |
How Does the Tool Path Directly Affect the Surface Finish of a Mold?

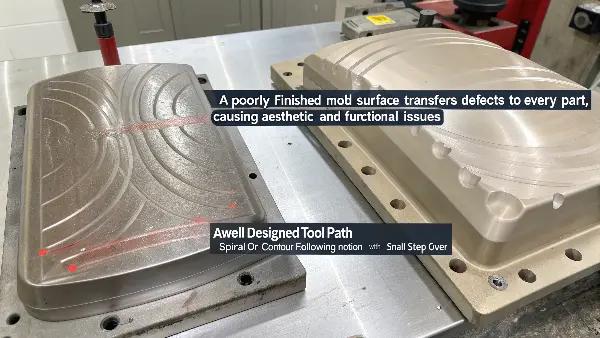

Are you getting parts with visible lines or a rough texture? This is often a direct reflection of the mold’s surface. A poor surface finish on the mold will transfer to every single part, leading to aesthetic rejects and potential functional issues.
The tool path strategy directly governs a mold’s surface finish. The direction, step-over, and type of finishing path determine the height of the cusps—tiny ridges left between passes. A well-designed path, like a spiral or contour-following motion with a small step-over, minimizes these cusps. This creates a smoother, more uniform surface that requires less manual polishing.
Think of it like mowing a lawn. If you mow in straight, overlapping lines, you get a clean, even result. If you move randomly with large gaps between passes, you’ll leave patches of uncut grass. CNC finishing is similar. The "cusps" are like those uncut patches. A traditional zig-zag path, for example, can create marks every time the tool changes direction. For a part that needs a cosmetic A-grade finish, this is unacceptable. It means more time and money spent on manual polishing, which can sometimes introduce new inaccuracies.
At our facility, we often use more advanced strategies for finishing. For example, a "scallop" or "constant Z" finishing path follows the contours of the mold shape. This keeps the cutting load on the tool consistent and results in a much smoother, more uniform surface right out of the machine. I remember working on a project for a consumer electronics housing. The client demanded a flawless, high-gloss finish. By using a 3D contour finishing path with a very fine step-over, we produced a mold surface that was almost mirror-like before it even went to the polishing bench. This level of detail in the strategy saved days of manual labor and ensured the client was thrilled with the final product.
Key Path Strategies for Surface Finish
The right strategy depends on the geometry of the mold cavity. There’s no one-size-fits-all answer, which is why expertise is so important.
- Contour (or Z-Level) Finishing: Excellent for steep walls. The tool moves around the part at constant Z-levels, like tracing elevation lines on a map.
- Raster (or Zig-Zag) Finishing: Good for flatter, open areas. It’s fast, but the direction changes can leave marks.
- Spiral or Helical Machining: Ideal for circular pockets. It creates a continuous tool path with no sharp direction changes, resulting in a very smooth finish.
- 3D Offset Machining: The tool path follows the overall shape of the surface, maintaining a constant step-over across the entire part. This is often the best choice for complex, organic shapes.
The Impact of Tool Choice
The tool path strategy is also linked to the tool itself. Using a ball-nose end mill versus a flat-bottom end mill dramatically changes the shape of the cusps left behind. A larger radius on the tool generally creates a smoother finish for a given step-over. We have to match the tool to the geometry and the strategy to get the best result. It’s a system where every element must work together.
| Finishing Strategy | Best For | Benefit for Surface Finish |
|---|---|---|
| Contour (Z-Level) | Steep walls and vertical features. | Provides a uniform finish on near-vertical surfaces. |
| Raster (Zig-Zag) | Large, relatively flat surfaces. | Fast and efficient, but can leave witness marks at direction changes. |
| Spiral/Helical | Circular pockets and bosses. | Creates a continuous cut, eliminating direction-change marks. |
| 3D Offset/Scallop | Complex, free-form 3D surfaces. | Maintains a constant cusp height for a highly consistent finish. |
Can the Wrong Tool Path Compromise a Mold’s Draft Angle Accuracy?
Are your parts sticking in the mold or showing drag marks after ejection? This is a classic sign of an inaccurate draft angle. Even a tiny error in this critical feature can bring your entire production line to a halt, and its origin can often be traced back to the tool path.
Yes, absolutely. The wrong tool path can severely compromise draft angle accuracy. Strategies that cause the cutting tool to deflect, like overly aggressive cuts or paths that put uneven pressure on the tool, can lead to the angle being cut incorrectly. A specialized path, such as contouring with a tapered tool, is essential for machining these angled surfaces with the required precision.
A draft angle is the slight taper we design into the sides of a mold cavity. It’s what allows the cooled, solidified part to release smoothly during ejection. Without it, the part would scrape against the mold wall, causing damage to both. The tolerance for these angles is often incredibly tight—sometimes less than a quarter of a degree.
I learned this the hard way on an early project. We were making a deep-core part, and the CAM programmer used a standard parallel finishing path on the side walls. During the first trial, the part got stuck so badly we had to disassemble the mold to get it out. When we inspected the cavity, we found the draft angle was inconsistent. The tool had bent slightly under pressure, cutting a true vertical wall at the bottom of the pass instead of the required 1-degree taper. We had to re-machine the core, which cost us time and money. That day, I truly understood that you can’t treat an angled wall like a flat floor. It needs a dedicated strategy.
Strategies for Accurate Draft Angles
To avoid these problems, we plan our tool paths specifically for angled surfaces.
- Contouring with Tapered Tools: The most direct method is using a cutting tool that already has the draft angle ground into it. The tool path simply guides the tool down the wall. This is fast and very accurate.
- Multi-Axis Machining: For complex angles or surfaces, we use 5-axis machines. This allows us to tilt the tool so it’s always perpendicular to the angled surface. This minimizes tool pressure and deflection, resulting in extreme accuracy.
- Finishing with Ball-Nose End Mills: When using a standard ball-nose tool, we use very small step-downs along the angled wall. This creates a series of tiny steps that approximate the angle. It requires more machining time but gives us fine control over the resulting surface.
The Hidden Enemy: Tool Deflection
Tool deflection is the slight bending of the cutting tool under load. It’s a major cause of draft angle errors.
| Factor Causing Deflection | How it Affects the Draft Angle | Our Solution |
|---|---|---|
| Long, Thin Tool | More prone to bending, especially deep in a cavity. | Use the shortest, most rigid tool possible for the job. |
| Aggressive Cut | High cutting forces push the tool away from the wall. | Use lighter finishing passes to reduce tool pressure. |
| Incorrect Tool Path | Paths that engage too much of the tool at once increase pressure. | Choose a path like contouring that provides a constant, manageable load. |
By carefully controlling these factors, we ensure that the draft angle we design in CAD is the exact same angle we machine into the steel. This guarantees that your parts will eject cleanly, cycle after cycle.
Conclusion
In mold manufacturing, precision isn’t an accident. It’s the result of deliberate, expert planning, and tool path strategy is at the heart of it. The right path ensures a flawless surface finish and dead-on draft angle accuracy, paving the way for a successful and efficient production run.
