Struggling with inconsistent ABS parts? It’s frustrating when they don’t perform. We meticulously optimize material and process parameters for your success.
At CavityMold, we achieve high-performance ABS parts by carefully selecting the right ABS grade and precisely controlling critical process parameters. This includes thorough material drying, optimized melt and mold temperatures, fine-tuned injection speeds and pressures, and strategic cooling techniques to ensure part integrity and performance.
So, you’re wondering how we actually make your ABS parts not just good, but great? It’s not magic, though sometimes it feels like it when everything clicks perfectly! It’s about understanding the material inside and out and treating the molding process like the science it is. At CavityMold, we’ve spent years – since 2009, in fact – honing this. Let me pull back the curtain a bit and show you how we tackle ABS. I think you’ll see why details matter so, so much in this game. Getting it right means your products work better and last longer.
What Makes ABS a Top Choice for Demanding Applications Anyway?
Ever wonder why so many products use ABS? It’s strong, looks good, and handles daily use. We help you tap into its full potential for your parts.
Acrylonitrile Butadiene Styrene (ABS) is a go-to thermoplastic because it offers a fantastic balance of toughness, impact strength, stiffness, good chemical resistance, and excellent surface finish. It’s also relatively easy to process, making it versatile for many industries.
When we talk about ABS, we’re talking about a real workhorse in the plastics world. Its Izod impact strength means it can take a knock – think about a TV remote dropped a few times or the casing of a power tool. It’s not going to shatter easily. Then there’s its heat deflection temperature; this ensures it holds its shape even when things get a bit warm, like components near a small motor or electronics that generate some heat. And tensile strength? That’s its ability to resist being pulled apart, which is super crucial for things like snap-fit enclosures or parts that bear a bit of a load.
I’ve personally seen us use ABS for everything from sleek, high-gloss casings for consumer electronics – where both the look and the toughness are paramount – to more rugged, functional parts inside automotive dashboards or even medical device housings. We work with a whole spectrum of ABS grades too, you know? Some are formulated for even higher impact resistance, perfect for parts that might really get banged around. Others might have flame retardant additives (FR-ABS), which is often a non-negotiable safety requirement in many electronic applications. It really is our go-to for so many projects because it’s just so darn versatile. For instance, a client like Alex, who’s often managing projects for consumer electronics from Australia, frequently specifies ABS for housings. He needs that perfect blend of a good-looking finish and the ability to withstand daily use. Our job, as I see it, is to help him (and you!) select the precise grade that’s going to hit all those requirements on the head, ensuring the final product isn’t just functional but also feels like quality. It’s about making smart choices upfront.
Is Proper Material Handling, Especially Drying, a Big Deal for ABS?
Seeing splay marks or brittle parts? Your ABS might be "wet." Proper drying is non-negotiable for quality results, and we take it very seriously.
Yes, absolutely! ABS is hygroscopic, meaning it absorbs moisture from the air. If not dried properly (e.g., 80-90°C for 2-4 hours), this moisture causes splay, brittleness, and reduced mechanical properties in molded parts.
| Okay, so ABS is what we call hygroscopic – that’s a bit of a mouthful, but it just means it absolutely loves to suck up moisture right out of the air. Think of it like a sponge left out on a damp day; it just soaks it in. Now, if you try to injection mold this ‘wet’ ABS, oh boy, you’re in for a world of trouble! The most common thing you’ll see are splay marks – those ugly, silvery streaks on the surface of the part. That’s basically steam trying to escape. Worse than just looking bad, that moisture turns into steam during molding and can severely degrade the plastic. This means your parts can become incredibly brittle, snapping way easier than they should. Essentially, all those great mechanical properties we just talked about, especially impact strength, just take a nosedive. I remember one horror story from early in my career – this was before CavityMold, thankfully! – where an entire batch of critical ABS parts was practically useless. They were snapping like crackers. Turns out, someone on the floor thought they could cut corners on the drying cycle to save a bit of time. Big, big mistake. That lesson really stuck with me. Here at CavityMold, we’re almost religious about proper drying. For most ABS grades, we’re looking at a good bake in a desiccant dryer, usually at around 80°C to 90°C (that’s about 175°F to 195°F) for at least 2 to 4 hours. Sometimes, if it’s been really humid or for specific grades, it might need even longer. The goal is to get that moisture content down below 0.1%, and ideally, we aim for even lower, like 0.05%. For super critical applications, especially for clients like Alex who need top-tier reliability, we’ll even pull out a moisture analyzer to verify the dryness. It might seem like a small, fussy step, but trust me, the number of potential headaches proper drying prevents is massive. It’s foundational for good parts; no ifs, ands, or buts about it! Here’s a quick look at our typical drying targets: |
Parameter | Our Sweet Spot | Why It’s So Key |
|---|---|---|---|
| Drying Temperature | 80-90°C | Hot enough to dry, cool enough to not degrade | |
| Drying Time | 2-4+ hours | Kicks moisture to the curb, properly | |
| Target Moisture Content | < 0.1% | Ensures strong, defect-free parts |
How Critical are Melt and Mold Temperatures for Flawless ABS Parts?
Inconsistent ABS parts causing you headaches? Temperature control isn’t just important, it’s everything. We precisely dial in melt and mold heat for perfect results.
Extremely critical! Correct melt temperature (typically 210-250°C for ABS) ensures proper material flow and fusion. Accurate mold temperature (usually 40-80°C for ABS) significantly impacts surface finish, shrinkage, warpage, and internal stresses. We optimize both meticulously.
Getting temperatures right in injection molding, especially for a material like ABS, is kind of like tuning a very sensitive musical instrument – if you’re a bit off, the whole performance (your part quality!) can sound pretty terrible. Let’s talk about melt temperature first. This is the temperature of the plastic as it’s being injected into the mold. For most ABS grades, we’re typically looking at a range between 210°C and 250°C (that’s roughly 410°F to 480°F). If you go too cold, the plastic will be too viscous, like trying to push honey in winter. This can lead to short shots (where the mold doesn’t fill completely), ugly weld lines where plastic fronts meet, or just poor fusion. On the flip side, if you get it too hot, you risk thermally degrading the ABS. This can cause discoloration, gas marks, reduced strength, and a generally poor-quality part – yuck! We always start with the material supplier’s datasheet as a guide, but then we carefully tweak it. The ideal melt temp can vary based on the specific part geometry, the complexity of the mold, and even the color of the plastic!
Then there’s mold temperature. This is the temperature of the steel mold surfaces that the molten plastic touches. For ABS, this usually falls in the 40°C to 80°C range (about 100°F to 175°F). This is just as crucial as melt temp, if not more so for certain characteristics. If the mold is too chilly, the plastic cools down too rapidly at the surface. This can lead to high internal stresses being locked into the part – and hello, warpage! It can also result in a dull or inconsistent surface finish. If the mold is too warm, your cycle times can go through the roof because the part takes forever to cool down enough to be ejected. Plus, overly hot molds can sometimes lead to parts sticking in the mold or an increase in sink marks on thicker sections. We aim for that Goldilocks zone: a great surface gloss (ABS can give a beautiful finish!), minimized internal stress, and reasonable cycle times. It’s a real balancing act, for sure. We use precise mold temperature controllers and often verify surface temperatures directly to ensure uniformity. I remember one project for a client, similar to what Alex might manage, involving a very sleek, glossy black electronics enclosure; maintaining a consistent and optimal mold temperature was absolutely everything for achieving that perfect, mirror-like finish they needed.
What About Injection Parameters – Speed, Pressure, and Holding – for Top-Notch ABS?
Dealing with frustrating flash, unsightly sinks, or incomplete fills in your ABS parts? Your injection parameters likely need careful adjustment. We fine-tune these with precision.
These are vital! We carefully control injection speed for optimal fill patterns, use adequate injection pressure to overcome flow resistance without flashing, and apply specific holding pressure and time to compensate for shrinkage and ensure dimensional accuracy.

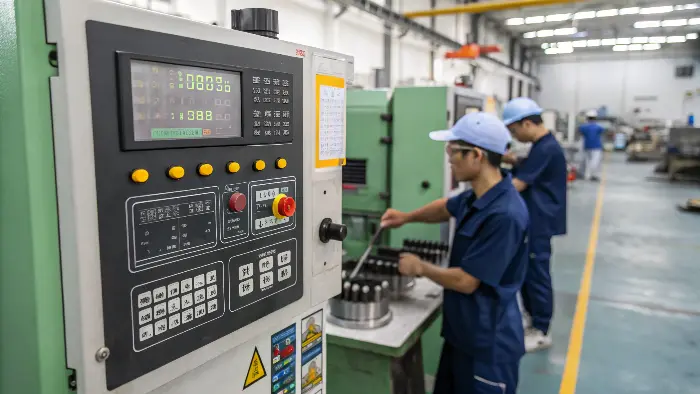

| Alright, so we’ve got our ABS nice and dry, and our melt and mold temperatures are dialed in. Now, how do we actually squirt that molten plastic into the mold cavity to form the part? That’s where the "action" parameters come in: injection speed, injection pressure, and then the holding phase (pressure and time). And believe me, it’s not just a simple case of "push hard and fast!" Let’s start with injection speed. This is how fast the screw in the injection unit pushes the plastic into the mold. If you inject too fast, you can run into a whole host of problems like jetting (where the plastic shoots across the cavity like a stream instead of filling smoothly), burn marks (from trapped air compressing and overheating), or even air traps that cause voids. Too slow, on the other hand, and you risk short shots, prominent flow marks on the surface, or weak weld lines because the plastic cools too much before fusing properly. What we often do, especially for more complex parts, is use a profiled injection speed. This means we might start injecting slowly as the plastic enters the gate, then speed up for the main fill, and then perhaps slow down again as the cavity becomes nearly full to manage venting and packing. It’s about controlling the flow front. Next up is injection pressure. You need enough primary injection pressure to overcome all the resistance the plastic encounters as it flows through the machine nozzle, the mold’s runner system, the gate, and then into the cavity itself. The goal is to fill the cavity completely and quickly (but controllably!). However, if your injection pressure is too high, or if your clamp tonnage isn’t sufficient, you’ll force the mold halves apart slightly and get flash – that thin film of plastic that oozes out at the parting line. Nobody wants that! Then, once the cavity is about 95-98% full, we switch from injection pressure to holding pressure (also called pack pressure). This is super, super important for a material like ABS because it has a notable shrinkage factor as it cools and solidifies. The holding pressure continues to pack a little more material into the cavity to compensate for this shrinkage. This helps prevent sink marks (those unsightly depressions on the surface, especially opposite ribs or bosses) and voids (internal bubbles). The holding time is how long we maintain this pressure. Generally, we hold it until the gate – the small opening where plastic enters the cavity – freezes off or solidifies. If you release the holding pressure too soon, before the gate is frozen, material can actually suck back out of the cavity, leading to under-packed parts and dimensional issues. Determining the right holding pressure (often a percentage of the primary injection pressure) and the precise holding time is a bit of an art and a science. For tricky parts, we sometimes do gate seal studies or use process monitoring data to really nail it down. It’s these details that make the difference between an okay part and a truly high-performance one. Here’s a simplified table of what we consider: |
Parameter | What We’re Watching For | Our General CavityMold Approach |
|---|---|---|---|
| Injection Speed | Smooth fill, no jetting, good surface cosmetics | Often profiled; medium to fast for many ABS parts | |
| Injection Pressure | Complete fill, avoiding flash or overpacking | Sufficient to fill, then precisely switch to holding | |
| Holding Pressure | Minimizing sinks/voids, part weight consistency | Typically 50-70% of injection pressure, packs it out nicely | |
| Holding Time | Gate freeze-off, dimensional stability | Long enough for the gate to solidify completely |
How Do We Tackle Cooling and Prevent Warpage in ABS Parts?
Are your ABS parts twisting or bending out of shape? An effective cooling strategy is vital. We design and implement it smartly to ensure dimensional stability.
Uniform cooling is king for preventing warpage in ABS! We achieve this by designing efficient cooling channels within the mold and carefully controlling coolant temperature and flow rate. This minimizes internal stresses and keeps parts flat.
You know, ABS, like pretty much all thermoplastics, shrinks a bit as it cools down from its molten state to a solid part. That’s just physics. The problem – and it can be a big problem – arises when different parts of your component cool down at different rates. Imagine one section of your part, maybe a thick wall, is still quite warm and shrinking, while another section, perhaps a thin fin, has already cooled and solidified. This difference in cooling and shrinkage rates creates internal stresses. And what happens when you have unbalanced internal stresses? You guessed it: warpage! The part literally pulls and twists itself out of its intended shape. It’s a real headache, especially for larger ABS parts, or those with complex geometries with varying wall thicknesses. A warped part might not fit in an assembly, or it might just look terrible.

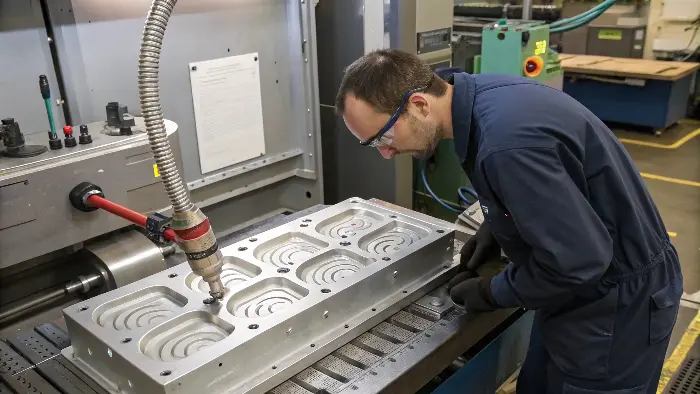

So, what’s our game plan at CavityMold to combat this? It really all starts way back in the mold design phase. We pay very close attention to the cooling channel design. These are passageways drilled into the mold steel through which a temperature-controlled fluid (usually water) circulates. The goal is to place these channels strategically to extract heat as evenly and efficiently as possible from all areas of the part. Sometimes that means adding more cooling channels near thicker sections or potential hot spots. Other times it involves using special mold materials with higher thermal conductivity or incorporating things like baffles or bubblers within the cooling lines to improve turbulence and heat transfer.
The temperature and flow rate of the cooling water itself are also big deals. If the water is too cold, you can "shock" the surface of the plastic, actually increasing stresses locally. If it’s too warm, or if the flow rate isn’t high enough, the cooling will be inefficient, and your cycle times will stretch out. We aim for a consistent, controlled flow and a water temperature that’s optimized for ABS and the specific part – often in that 40-80°C mold temperature window we talked about. For really tricky parts, where ultimate precision is paramount – maybe something like Alex, our project manager persona, is working on that needs to fit perfectly into a tight electronic assembly – we might even discuss a post-molding annealing step with the client. Annealing is basically a controlled heating of the molded parts to a temperature below their distortion point, holding them there for a period, and then cooling them very slowly. This process helps to relax and relieve any locked-in stresses from molding. It adds an extra step and cost, sure, but for achieving the absolute best dimensional stability and minimizing any long-term warpage risk, it can be worth its weight in gold! 🔥 It’s all about ensuring that what comes out of the mold stays true to form.
Conclusion
At CavityMold, we master ABS molding by meticulously optimizing every material choice and process parameter. This ensures your parts deliver the high performance your projects demand.
