Choosing the wrong reinforced material can cause catastrophic part failure, leading to project delays and costly redesigns. You need a material that meets your exact specifications. Understanding the unique properties of glass-filled and carbon-filled nylon is the key to selecting the perfect match for your application’s demands.

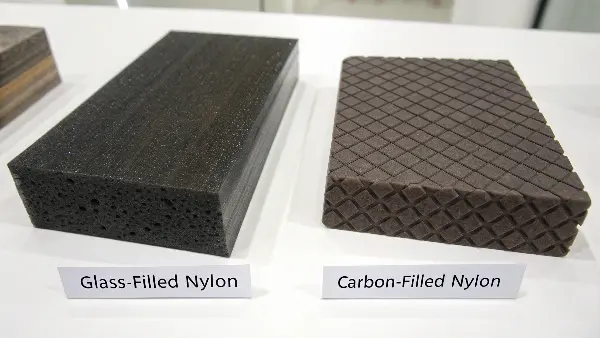

The best choice depends on your specific needs. Glass-filled nylon offers an excellent balance of strength, stiffness, and impact resistance at a lower cost, making it ideal for many structural components. Carbon-filled nylon provides superior stiffness, higher strength-to-weight ratio, and better dimensional stability, making it the premier choice for high-performance applications where weight and precision are critical, despite its higher price.
This choice isn’t just about picking the "stronger" material; it’s a strategic decision that impacts everything from part performance and longevity to the final product cost. I’ve seen projects succeed or fail based on this single choice. To help you make the right call, we need to dive deeper into the specific properties that set these two remarkable materials apart. Let’s break down what really matters for your project.

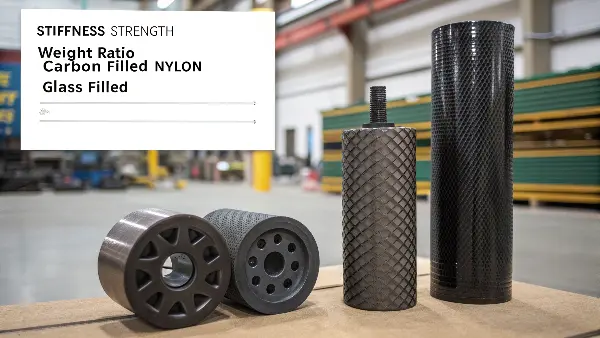

What Are the Core Mechanical Differences Between Glass and Carbon Fillers?
Are you worried that your reinforced nylon part might not be strong or rigid enough for its intended use? This uncertainty can lead to over-engineering, which wastes money, or under-engineering, which risks failure. Let’s clarify the fundamental differences in mechanical performance to give you confidence in your material choice.
Carbon-filled nylon is significantly stiffer and stronger than glass-filled nylon, especially when comparing similar filler percentages. While glass fibers enhance overall toughness and impact resistance, carbon fibers provide a much higher strength-to-weight ratio. This means you get more rigidity and strength for less weight, a critical advantage in high-performance applications where every gram counts.
When we talk about mechanical properties, we’re really asking: "How does this material behave under stress?" For engineers like us, the numbers tell the story. The primary role of fillers like glass and carbon is to enhance the base properties of nylon, but they do so in very different ways. I remember working on a project for a drone frame. The initial design used glass-filled nylon for cost reasons, but vibration was a huge issue. The frame flexed too much during flight, affecting stability. We switched to a carbon-filled nylon, and the difference was night and day. The increased stiffness, or flexural modulus, solved the vibration problem instantly.
Let’s look at the key metrics:
- Tensile Strength: This measures the material’s ability to resist being pulled apart. Carbon fibers contribute more to tensile strength than glass fibers, creating a stronger material overall.
- Flexural Modulus: This is a measure of stiffness, or the material’s resistance to bending. Carbon-filled nylon has a much higher flexural modulus. This is why it’s preferred for parts that must remain rigid under load, like our drone frame example.
- Impact Strength: This indicates how well a material can absorb a sudden shock. Here, glass-filled nylon often has an edge. The less-brittle nature of glass fibers helps dissipate impact energy, making it a good choice for parts that might be dropped or hit.
Here is a simplified comparison of a 30% filled Nylon 6/6:
| Property | Glass-Filled Nylon (30%) | Carbon-Filled Nylon (30%) | Why It Matters |
|---|---|---|---|
| Tensile Strength | High | Very High | Resistance to pulling forces. |
| Flexural Modulus | High | Extremely High | Stiffness; resistance to bending. |
| Impact Strength | Good | Moderate | Ability to withstand sudden shocks. |
| Density | Higher | Lower | Crucial for lightweight applications. |
Choosing correctly means matching these properties to your application. For a simple structural bracket, the cost-effective strength of glass-filled nylon is often perfect. But for a lightweight robotic arm requiring extreme precision and rigidity, the superior properties of carbon-filled nylon are well worth the investment.

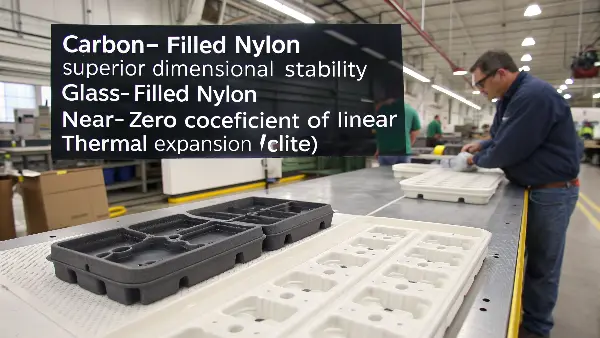

How Do Fillers Affect Dimensional Stability and Tolerances?
Have you ever designed a set of interlocking parts, only to find they don’t fit together perfectly after molding? This warping or shrinking can derail an assembly line and force expensive mold rework. Understanding how fillers influence dimensional stability is essential for manufacturing parts that meet tight tolerances, every time.
Carbon-filled nylon provides far superior dimensional stability compared to glass-filled nylon. This is because carbon fibers have a near-zero Coefficient of Linear Thermal Expansion (CLTE) and promote more uniform, isotropic shrinkage. This means parts are less likely to warp or change size with temperature fluctuations, allowing for the design and production of components with much tighter and more reliable tolerances.
Dimensional stability is a critical but often overlooked factor in material selection. It’s not just about how the part behaves on day one, but how it holds its shape over its entire service life, especially under varying temperatures. This is where the type of filler makes a huge difference. Glass fibers are better than no filler at all, but they don’t compare to carbon fibers. Carbon fibers have a very low, almost negligible CLTE. When they are mixed into the nylon matrix, they help "lock" the polymer in place, drastically reducing its natural tendency to expand or contract with heat.
I once consulted on a project for an optical device housing. The initial spec used glass-filled PA66. The problem was that the alignment of the internal lenses would shift slightly as the room temperature changed, throwing the device out of focus. The part itself was warping on a microscopic level. For something that sensitive, it was a complete failure. The solution was switching to a 20% carbon-filled nylon. The minimal CLTE of the new material kept the housing perfectly stable, regardless of ambient temperature changes. The problem was solved, but it was a costly lesson in material science.
Here are the key factors at play:
- Coefficient of Linear Thermal Expansion (CLTE): This value tells you how much a material expands or shrinks for each degree of temperature change. A lower CLTE is almost always better for precision parts.
- Shrinkage Rate: All plastics shrink as they cool in the mold. Fillers help reduce the overall shrinkage, but the type of filler matters. Carbon fibers help make this shrinkage more isotropic (uniform in all directions), while glass fibers can lead to anisotropic shrinkage (different rates along and across the flow direction), which is a primary cause of warp.
| Feature | Glass-Filled Nylon | Carbon-Filled Nylon | Impact on a Project Manager like Alex |
|---|---|---|---|
| CLTE | Moderately reduced | Drastically reduced | Carbon-filled parts hold tolerances better in fluctuating thermal environments. |
| Shrinkage Control | Anisotropic; higher chance of warp | Isotropic; much lower chance of warp | Easier to predict final part dimensions and achieve first-time-right molding. |
| Achievable Tolerances | Good | Excellent | Enables designs with complex geometries and precise fits. |
For any part that needs to fit perfectly with another, or for any application where temperature changes are expected, the superior dimensional stability of carbon-filled nylon is a powerful advantage. It simplifies mold design and significantly reduces the risk of post-production issues.
Which Material Performs Better Under Electrical and Thermal Stress?
Struggling to find a material that won’t fail in a high-heat environment or that meets your product’s electrical requirements? Choosing incorrectly can lead to short circuits, component melting, or premature failure. Let’s examine how glass and carbon fillers impact thermal and electrical performance to ensure your parts are safe and reliable.
Glass-filled nylon is an excellent electrical insulator, making it ideal for housings and components that need to prevent electrical conductivity. Conversely, carbon-filled nylon is electrically conductive, offering EMI/RFI shielding and anti-static properties. For thermal stress, both materials increase the Heat Deflection Temperature (HDT) of nylon, but carbon-filled grades generally offer slightly better performance and heat dissipation.
The electrical properties of these two materials are polar opposites, and this is a non-negotiable point during selection. I’ve seen this mistake made before. A team once designed a housing for a sensitive electronic sensor using carbon-filled nylon because they needed the stiffness. They didn’t realize it was conductive. During testing, they kept getting short circuits and couldn’t figure out why until we traced the problem back to the housing material itself. They had to re-tool and mold the entire batch in glass-filled nylon, an expensive and time-consuming error.
Glass is a natural insulator (dielectric), so adding it to nylon maintains or even improves its insulating properties. This makes it the default choice for electrical boxes, connectors, and power tool casings. Carbon, on the other hand, is conductive. Adding carbon fibers to nylon turns an insulator into a conductor. This is a huge advantage for specific applications:
- EMI/RFI Shielding: The conductive network of carbon fibers can block electromagnetic and radio frequency interference, protecting sensitive electronics without needing a separate metal shield.
- ESD Protection: For components used in electronics assembly or in explosive environments, carbon-filled nylon can safely dissipate static charge, preventing electrostatic discharge (ESD) that could damage delicate circuits.
When it comes to heat, both fillers are a major improvement over unfilled nylon. The fibers help the material maintain its shape at higher temperatures.
- Heat Deflection Temperature (HDT): This is the temperature at which a material starts to deform under a specific load. Both fillers significantly increase nylon’s HDT, allowing parts to be used in under-hood automotive applications or near motors. Carbon-filled nylon often has a slight edge here and also provides better thermal conductivity, meaning it can help dissipate heat away from a source.
| Property | Glass-Filled Nylon | Carbon-Filled Nylon | Common Application Use Case |
|---|---|---|---|
| Electrical Resistivity | High (Insulator) | Low (Conductive/Static Dissipative) | Power tool housings (GF) vs. electronics enclosures (CF) |
| EMI/RFI Shielding | None | Excellent | Shielding sensitive medical or aerospace electronics. |
| Heat Deflection Temp. | High | Very High | Under-hood automotive components, high-load gears. |
| Thermal Conductivity | Low | Moderate | Dissipating heat from embedded electronics. |
The choice is clear: for electrical insulation, glass-filled nylon is the only option. For applications requiring conductivity, static dissipation, or EMI shielding, carbon-filled nylon is the engineered solution.
When Does the Cost Difference Justify Using Carbon-Filled Nylon?
Are you wondering if the high price of carbon-filled nylon is ever truly worth it? It’s easy to default to the cheaper glass-filled option to protect your budget. But in some cases, this can be a false economy, leading to a product that fails to meet critical performance goals.
The higher cost of carbon-filled nylon is justified when its unique properties—such as superior strength-to-weight ratio, exceptional stiffness, and excellent dimensional stability—are mission-critical requirements that glass-filled nylon cannot meet. It’s an investment in performance for applications in aerospace, high-end sports equipment, robotics, and precision instruments where failure is not an option and weight savings directly translate to value.
As a project manager, your job is to balance performance with cost, and the price gap between these materials is significant. Carbon fibers are simply more expensive to produce than glass fibers, and this is reflected in the final material price. So, when do I advise clients to make that leap? It comes down to identifying non-negotiable performance criteria. I worked with a company developing professional cycling components. For them, every gram saved on a bike frame or gear set translates directly to a competitive advantage. Using a lightweight, ultra-stiff carbon-filled polymer wasn’t a luxury; it was a core part of the product’s value proposition. In this case, the higher material cost was easily justified by the premium price the final product could command.
Let’s break down the decision-making process:
Scenarios Justifying Carbon-Filled Nylon:
- Weight is a Primary Constraint: In aerospace, drones, and high-performance vehicles, reducing weight directly improves fuel efficiency, speed, or payload capacity. The strength-to-weight ratio of carbon-filled nylon is unmatched.
- Extreme Stiffness is Required: For robotic arms, measuring devices, or high-speed machinery parts, any amount of flex can lead to inaccuracy or vibration. The exceptional flexural modulus of carbon-filled nylon ensures ultimate rigidity.
- Tight Tolerances are Critical: In optical devices, precision connectors, or complex assemblies, the superior dimensional stability and low CLTE of carbon-filled grades prevent warping and ensure a perfect fit over the product’s lifetime.
- Material Consolidation: Sometimes, a single carbon-filled nylon part can replace a more complex assembly of metal and plastic. While the material itself is more expensive, the savings from simplified manufacturing and assembly can lead to a lower overall cost.
| Factor | Choose Glass-Filled Nylon (Cost-Effective) | Choose Carbon-Filled Nylon (Performance-Driven) |
|---|---|---|
| Primary Goal | Good mechanical properties at a low cost. | Maximum performance, regardless of cost. |
| Application Example | Automotive brackets, power tool housings, furniture parts. | Aerospace components, racing parts, robotic end-effectors. |
| Key Property Driving Decision | Overall durability and impact strength. | Strength-to-weight ratio, stiffness, or dimensional stability. |
| Budget Impact | Keeps material costs low. | Higher upfront cost, justified by performance gains or brand value. |
The final decision is a strategic one. If glass-filled nylon can do the job reliably, it’s the smart economic choice. But if you’re pushing the boundaries of performance, carbon-filled nylon isn’t a cost—it’s an enabling technology.
What Are the Molding and Machining Considerations for Each Material?
Thinking about specifying a reinforced nylon but worried about manufacturing challenges? Both glass and carbon fillers introduce complexities in mold design and post-processing. Overlooking these can result in premature tool wear, poor surface finish, and parts that don’t meet spec, ultimately impacting your bottom line.
Both materials are abrasive and require hardened steel molds (P20 is insufficient; H13 or S136 is recommended) to prevent wear. Carbon-filled nylon is generally more abrasive than glass-filled. Gate design is crucial to manage fiber orientation, which affects warp and strength. For machining, carbon-filled nylon produces finer, more abrasive dust, requiring better dust extraction and specialized tooling for a clean cut.
From a mold maker’s perspective, the choice between glass and carbon-filled nylon has immediate practical consequences. These aren’t simple commodity plastics. The fibers, which give the parts their strength, are also highly abrasive to the steel tools used to shape them. We had a client who tried to run a 30% glass-filled nylon in a standard P20 steel mold designed for unfilled materials. After just a few thousand cycles, the gate and cavity surfaces were visibly worn, and part dimensions started to drift out of tolerance. The tool had to be pulled for costly repairs. For any fiber-reinforced material, we insist on using high-quality, hardened tool steels like H13 or stainless S136 to ensure a long and productive mold life.
Key Molding Considerations:
- Tool Steel: Hardened steel is mandatory. The higher the filler content, the more critical this becomes.
- Gate Design and Location: The gate is where plastic enters the cavity. Its location and size determine how the fibers align as the material flows. This orientation is critical, as the part will be much stronger along the fiber direction. Poor gate design can create weak spots or lead to severe warping.
- Venting: Trapped gases can cause burn marks and incomplete filling. Both materials require adequate venting, but the processing parameters differ slightly.
- Drying: Nylon is hygroscopic, meaning it absorbs moisture from the air. Both materials must be properly dried before molding to prevent cosmetic defects and loss of mechanical properties.
Key Machining Considerations:
Machining these materials post-molding also requires care.
- Tooling: Use sharp, carbide or diamond-coated tools. Standard high-speed steel (HSS) will dull very quickly.
- Dust Control: The dust from both materials is abrasive and can be a health hazard. Carbon dust is particularly fine and conductive, posing a risk to machine electronics if not properly managed with good vacuum extraction.
- Heat Buildup: The low thermal conductivity of plastic means heat can build up at the cutting edge, potentially melting the material. Use appropriate feeds, speeds, and coolants (if applicable) to manage heat.
- Finish: Carbon-filled nylon can often be machined to a smoother, cleaner finish than glass-filled nylon, whose exposed glass fibers can create a rougher surface.
For project managers, discussing these points with your mold maker early in the design phase is crucial. A good supplier will help you optimize your part design for manufacturability, ensuring a smoother production run and a higher-quality final product.
Conclusion
Ultimately, whether you choose glass-filled or carbon-filled nylon depends on balancing performance and cost. Glass-filled nylon is the workhorse for strong, tough, and affordable parts. Carbon-filled nylon is the high-performance specialist, chosen when superior stiffness, low weight, and absolute precision are non-negotiable requirements.
